DISCAL® AUTOMATIC AIR SEPARATOR
● The Discal range of air eliminators are designed for use with heating circuits to provide an efficient method of air removal
● Max working pressure: 10 bar
● Max working temperature: 110°C without isolation
● Max percentage of glycol: 50%
For products 551052 - 551153 only
● Temperature range: 0 - 104°C (DN50-DN100)
● Temperature range: 0 - 100°C (DN125-DN150)
● With Insulation
| Reference | Name | Size | Connections | Insulation | Orientation | Body |
|---|---|---|---|---|---|---|
| 551902 | DISCAL® automatic air separator (vertical with compression ends) | 22mm | Compression | No | Vertical | Brass |
| 551003 | DISCAL® automatic air separator without drain | ¾″ | F X F BSP | No | Horizontal | Brass |
| 551006 | DISCAL® automatic air separator | 1″ | F X F BSP | No | Horizontal | Brass |
| 551007 | DISCAL® automatic air separator | 1¼″ | F X F BSP | No | Horizontal | Brass |
| 551008 | DISCAL® automatic air separator | 1½″ | F X F BSP | No | Horizontal | Brass |

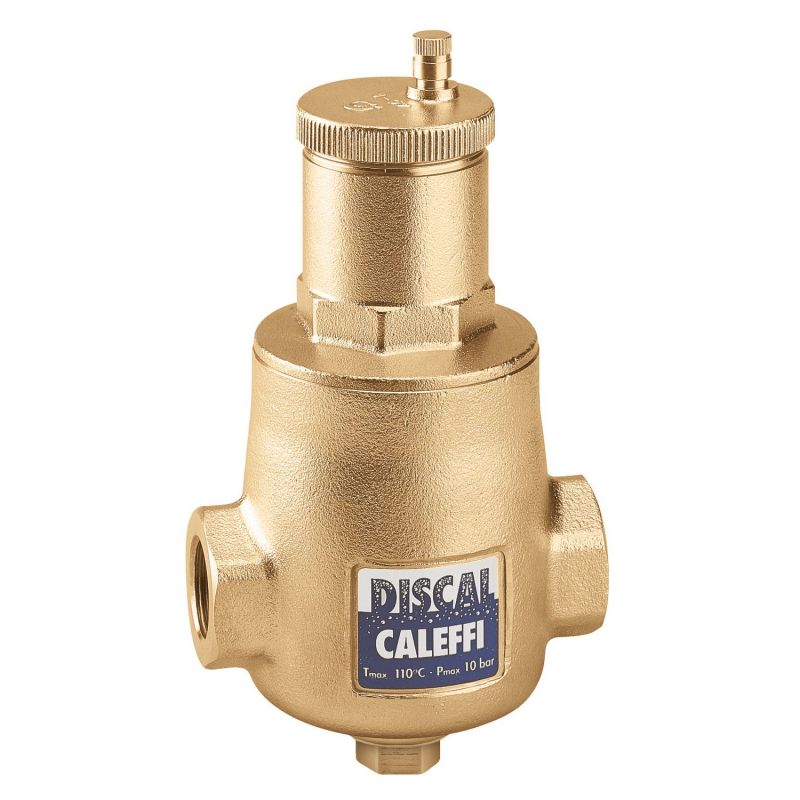

| 551009 | DISCAL® automatic air separator | 2″ | F X F BSP | No | Horizontal | Brass |
| 551905 | DISCAL® automatic air separator (vertical) | ¾″ | F X F BSP | No | Vertical | Brass |
| 551906 | DISCAL® automatic air separator (vertical) | 1″ | F X F BSP | No | Vertical | Brass |
| 551052 | DISCAL® automatic air separator (flanged with insulation) | DN50 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 551062 | DISCAL® automatic air separator (flanged with insulation) | DN65 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 551082 | DISCAL® automatic air separator (flanged with insulation) | DN80 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 551102 | DISCAL® automatic air separator (flanged with insulation) | DN100 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 551122 | DISCAL® automatic air separator (flanged with insulation) | DN125 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 551152 | DISCAL® automatic air separator (flanged with insulation) | DN150 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |

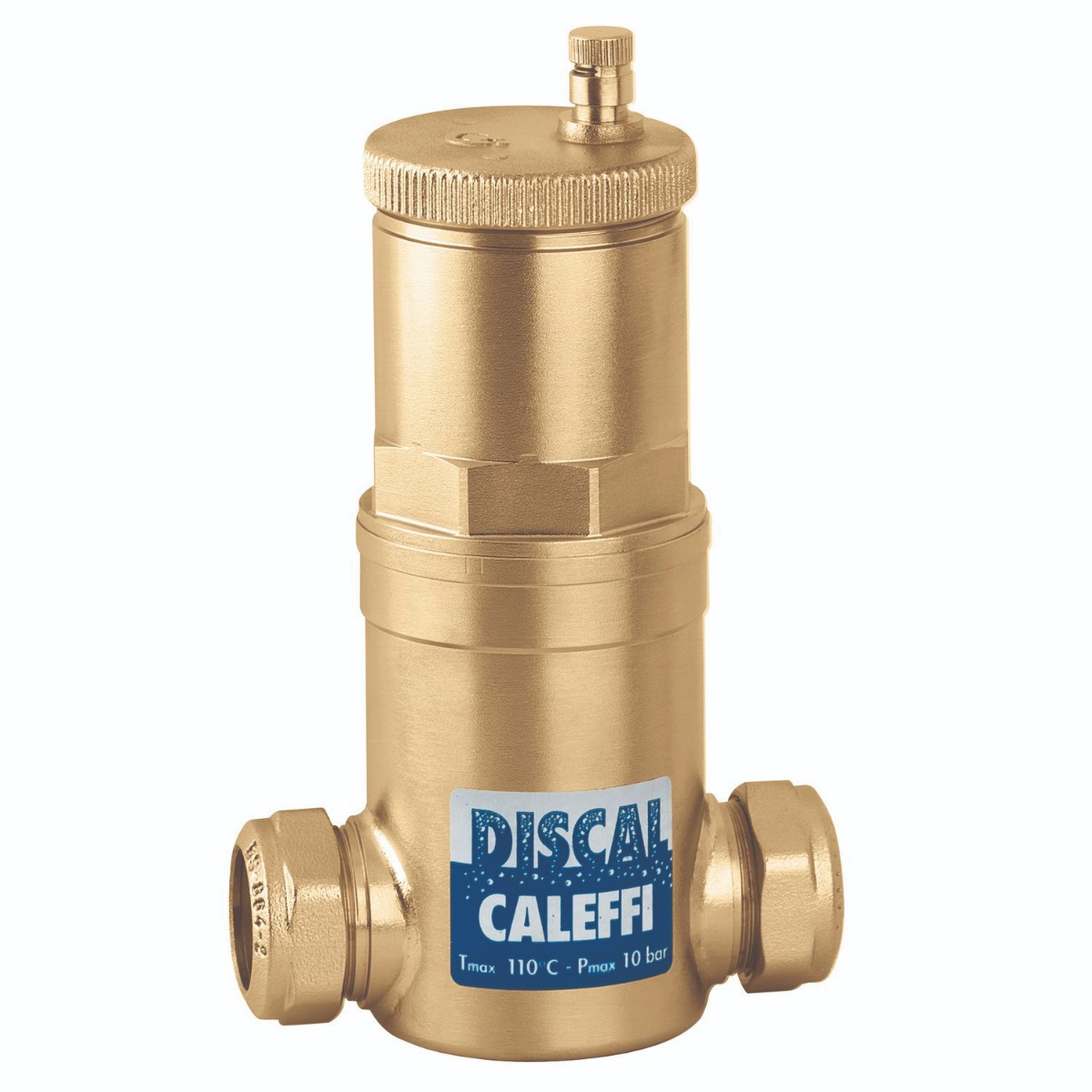

| 551002 | DISCAL® automatic air separator (compression ends without drain) | 22mm | Compression | No | Horizontal | Brass |
| 551702 | DISCAL® - 551 Series - Automatic Deaerators | Ø 22 | Compression | No | Brass | |
| 551703 | DISCAL® - 551 Series - Automatic Deaerators | Ø 28 | Compression | No | Brass | |
| 551005 | DISCAL® automatic air separator | ¾″ | F X F BSP | No | Horizontal | Brass |
| 551705 | DISCAL® - 551 Series - Automatic Deaerators | ¾″ | Compression | No | Brass | |

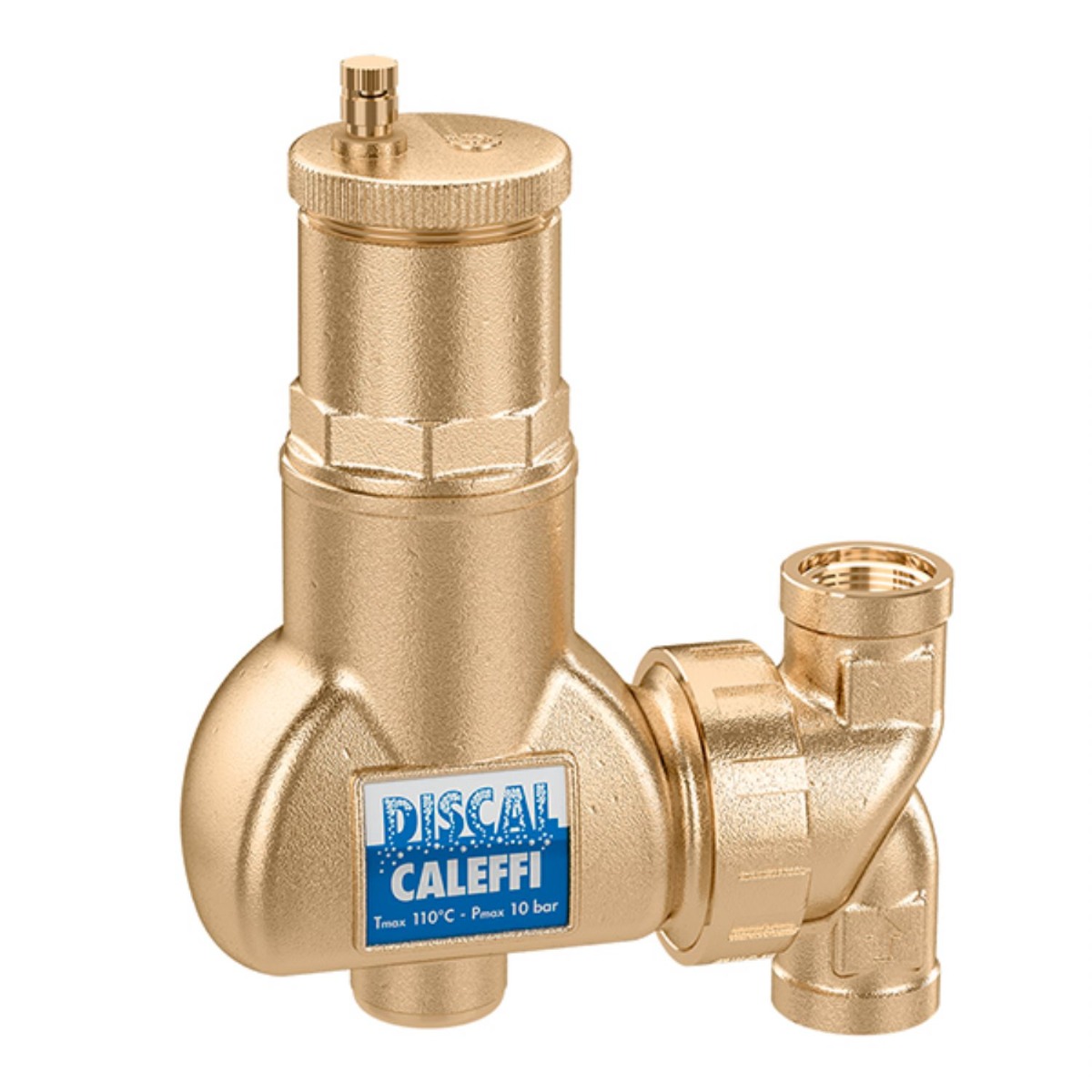

| 551706 | DISCAL® - 551 Series - Automatic Deaerators | 1″ | Compression | No | Brass |
