Domestic Flow Regulation

Combined into one valve body are a ball isolating valve, a strainer and automatic flow regulating valve, saving assembly time and space. Flow regulation is achieved by pre-selecting the appropriate automatic flow cartridge to maintain a constant flow of water to a tap, mixer, shower or thermostatic mixing valve. By pre-selecting the flow cartridge to match the desired flow from the outlet, savings in water consumption are easily achieved.

Features

The main benefits of the Calflow® Plus when used in hot, cold and mixedwater supply pipes are;

• Isolation of outlet fittings should maintenance be required at sometime in the future and when the strainer element requires cleaning.

• The generously proportioned strainer element collects debris without continually becoming clogged and restricting the water supply.

• The automatic flow cartridge allows a continuous and constant flowof water at the desired flow rate and prevents overflow from occurring.

• The flow cartridge is easily replaced.

● Colour coded to denote literage per minute, allows constant flow without overflow occurring

● Flow limiter, brass body, chrome plated.
● Max working pressure: 12 bar
● Max working temperature: 80°C
● Accuracy ±10%

● Max working pressure: 5 bar
● Max working temperature: 80°C
● Accuracy ±10%

For adjusting and control of flows in heating, air conditioning and cooling systems.
Visual flow indicator and flow adjustment.

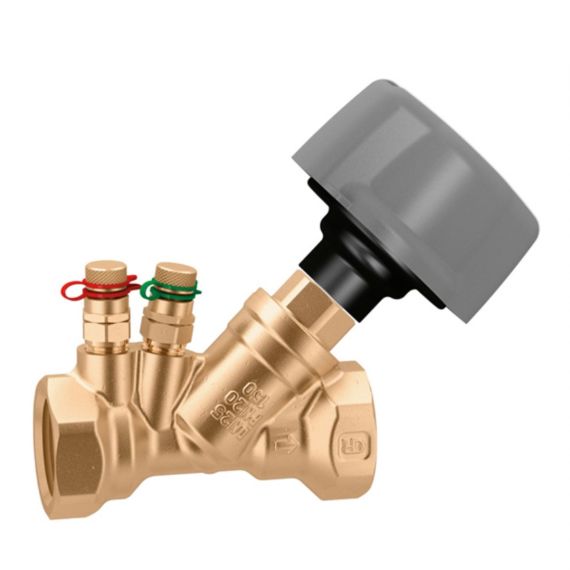

Balancing valves are used to regulate the flow of heating or chilled water to a heating or cooling emitter, such as a fancoil or air handling unit.

Hydraulic circuits must be correctly balanced to ensure that the system performs within the design parameters and provides a high level of comfort for the occupants, with the lowest possible energy consumption.

● Max working pressure: 16 bar
● Working temperature range: -20 to 120˚C
● Max percentage of glycol: 50%
