RPZ VALVES
The ‘BA” Backflow Preventer is a verifiable mechanical device designed to prevent contamination of the wholesome water by either back-siphonage due to a reduced or negative pressure in the mains water supply or system back pressure from the water installation within the premises.The device consists of an arrangement of water fittings within three pressure zones having different obturators and a dump valve.When backflow or back pressure conditions occurs the device provides an atmospheric separation between the wholesome water system and the contaminated fluid.
Where can the ‘BA” Backflow Prevention device be Used?
Proper use of the BA type backflow preventer is regulated by the European standard on prevention of pollution from backflow. The relevant standard is BS EN 1717:2000 ‘Protection against pollution of potable water in water installations and the general requirements of devices to prevent pollution by backflow’. The types of water contained in water systems are classified in this standard according to the degree of risk to health.

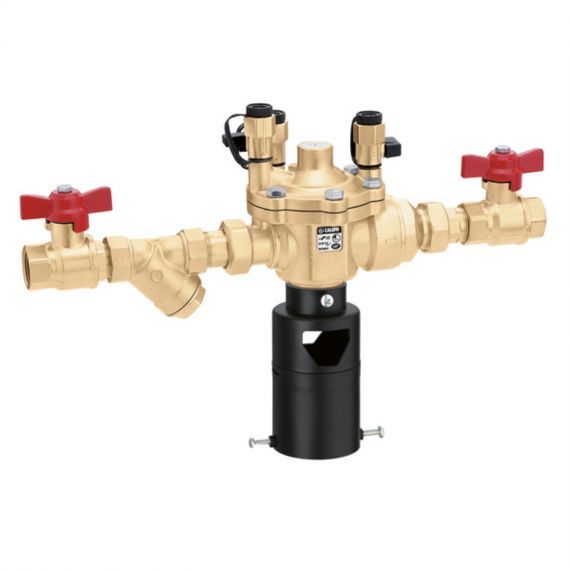

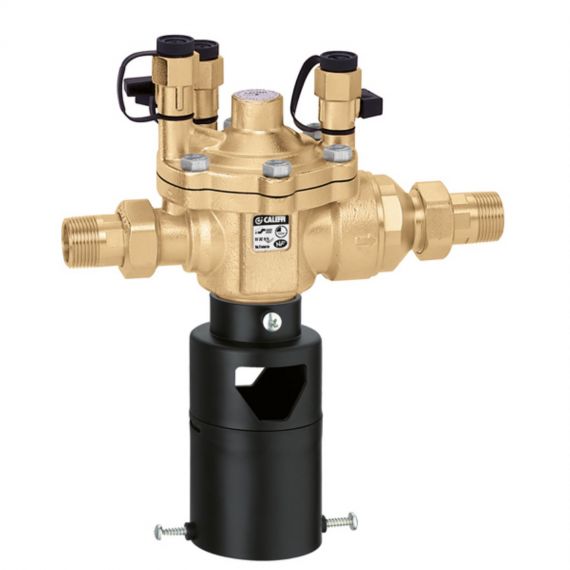

RPZ VALVE - COMPLETE ASSEMBLIES
The Altecnic range of BA type backflow prevention devices designed for applications in water distribution systems to prevent back siphonage and back flow in fluid category 4 applications.
● Max pressure at inlet: 10 bar
● Max working temperature: 65°C
● Complete list of spares available

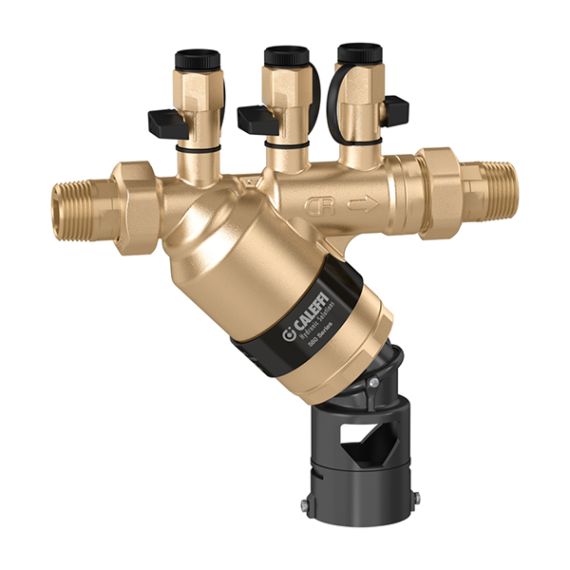

● Includes RPZ, isolation valve and strainerRPZ VALVES
● Backflow preventer with multifunction geometry
● BA type
● Dezincification resistant alloy body
● Threaded union connections
● For linear installation on horizontal or vertical pipes
● Complete with strainer at the inlet
● Max working temperature: 65°C
● Certified to BS EN 12729 standardDOUBLE CHECK VALVES - ECOFIL®
● Dezincification resistant brass alloy
● Max working pressure: 10 bar

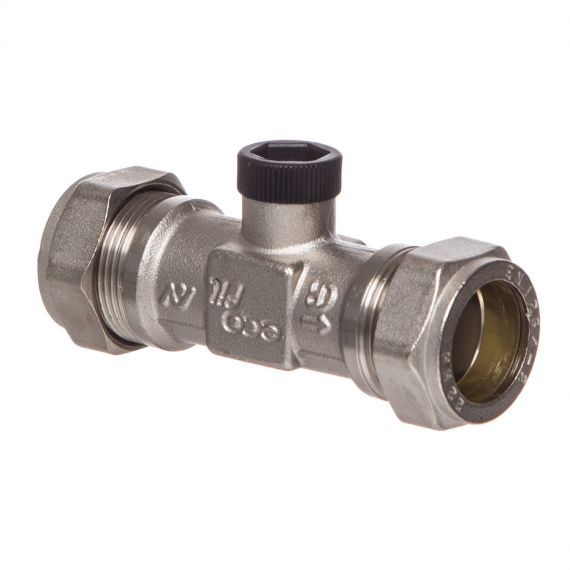

● Max working temperature: 60°CDOUBLE CHECK VALVES - ECOFIL®
● Double check valve with compression ends
● Dezincification resistant brass alloy
● Nickel plated finish to body
● Max working pressure: 10 bar

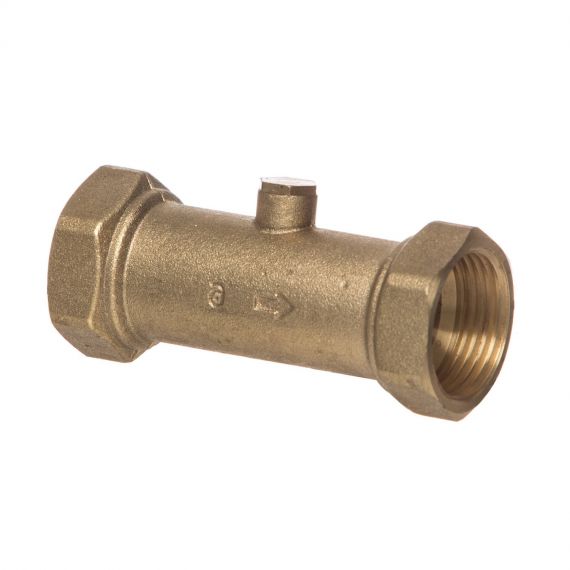

● Max working temperature: 60°CDOUBLE CHECK VALVE
Altecnic double check valves are used to prevent the risk of backflow and back siphonage contamination in domestic dwellings, public and commercial buildings. The valves should be installed close to the water outlet such as taps, basin taps, showers and toilets to prevent back siphonage contamination to the water supply, should a mains supply pipe burst.
● Test pressure: 15 bar
● Max working pressure: 10 bar
● Min working pressure: 0.2 bar
● Max working temperature: 60°C
● Conforms to: BS EN 13959
