145 SERIES PICV 10MM - 32MM
The pressure independent control valve (PICV) is a valve comprising an automatic flow rate regulator and a control valve with actuator. The valve can adjust the flow rate and keep it constant in the presence of changing differential pressure conditions of the circuit.
Flow rate is adjusted in two different ways:
•manually on the automatic flow rate regulator, to restrict the maximum value
•automatically by the control valve in combination with a proportional (0 to 10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit of the system to be controlled.
The pressure independent control valve (PICV) is supplied complete with connections for upstream and downstream pressure test ports for checking of operating conditions.
| Reference | Name | Flow Rate | Size | Connections |
|---|---|---|---|---|
| 145430 H40 | PICV 10mm - 32mm | 0.08 - 0.40 m³/h | DN10 3/8” | M x M BSP |
| 145430 H80 | PICV 10mm - 32mm | 0.08 - 0.80 m³/h | DN10 3/8” | M x M BSP |
| 145440 H40 | PICV 10mm - 32mm | 0.08 - 0.40 m³/h | DN15 ½″ | M x M BSP |
| 145440 H80 | PICV 10mm - 32mm | 0.08 - 0.80 m³/h | DN15 ½″ | M x M BSP |
| 145550 1H2 | PICV 10mm - 32mm | 0.12 - 1.20 m³/h | DN20 ¾″ | M x M BSP |
| 145550 1H8 | PICV 10mm - 32mm | 0.18 - 1.80 m³/h | DN20 ¾″ | M x M BSP |
| 145550 H40 | PICV 10mm - 32mm | 0.08 - 0.40 m³/h | DN20 ¾″ | M x M BSP |
| 145550 H80 | PICV 10mm - 32mm | 0.08 - 0.80 m³/h | DN20 ¾″ | M x M BSP |
| 145560 1H2 | PICV 10mm - 32mm | 0.12 - 1.20 m³/h | DN25 1” | M x M BSP |
| 145560 H40 | PICV 10mm - 32mm | 0.08 - 0.40 m³/h | DN25 1” | M x M BSP |
| 145560 H80 | PICV 10mm - 32mm | 0.08 - 0.80 m³/h | DN25 1” | M x M BSP |
| 145660 1H8 | PICV 10mm - 32mm | 0.18 - 1.80 m³/h | DN25 1” | M x M BSP |
| 145660 3H0 | PICV 10mm - 32mm | 0.30 - 3.00 m³/h | DN25 1” | M x M BSP |
| 145770 1H8 | PICV 10mm - 32mm | 0.18 - 1.80 m³/h | DN32 1¼″ | M x M BSP |

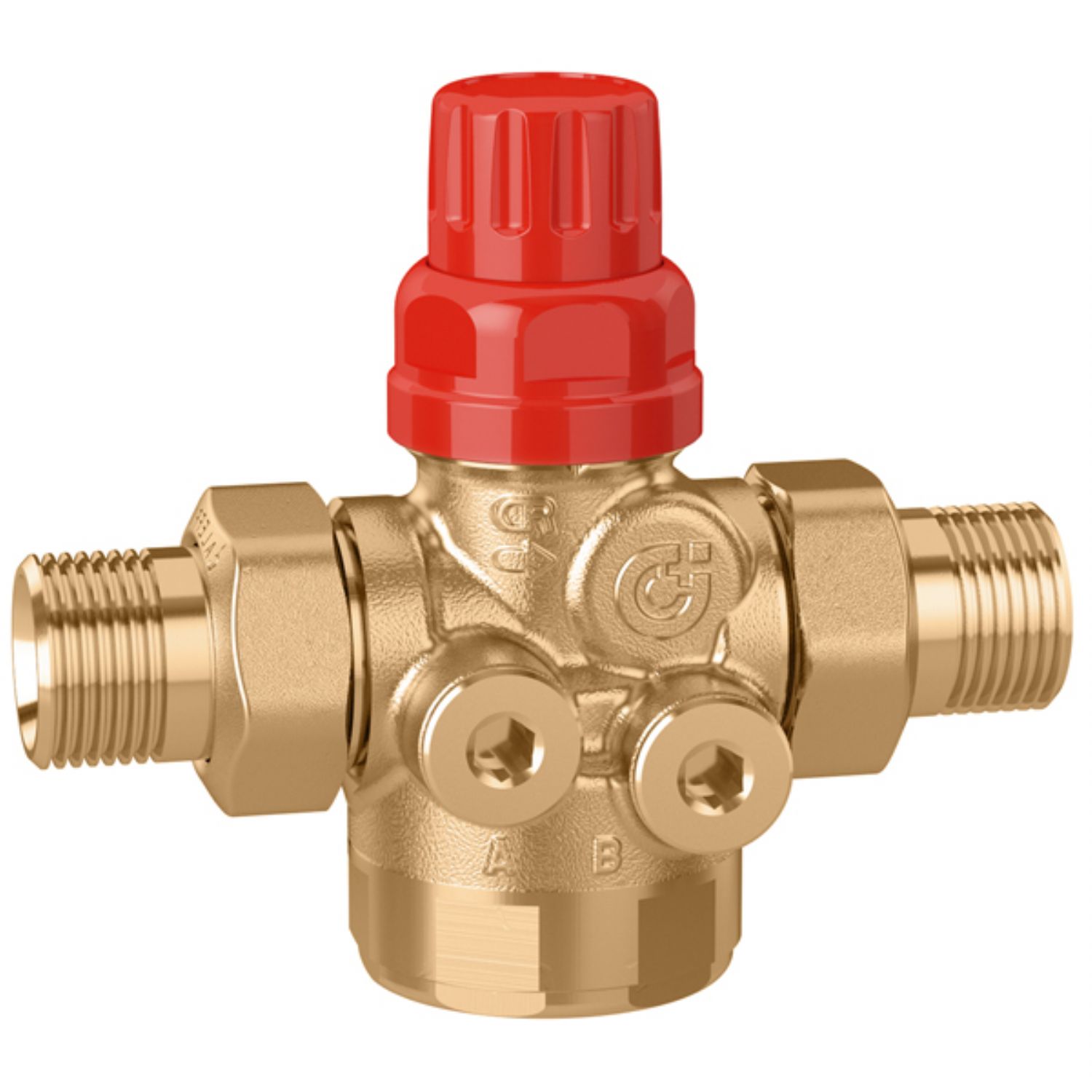

| 145770 3H0 | PICV 10mm - 32mm | 0.30 - 3.00 m³/h | DN32 1¼″ | M x M BSP |

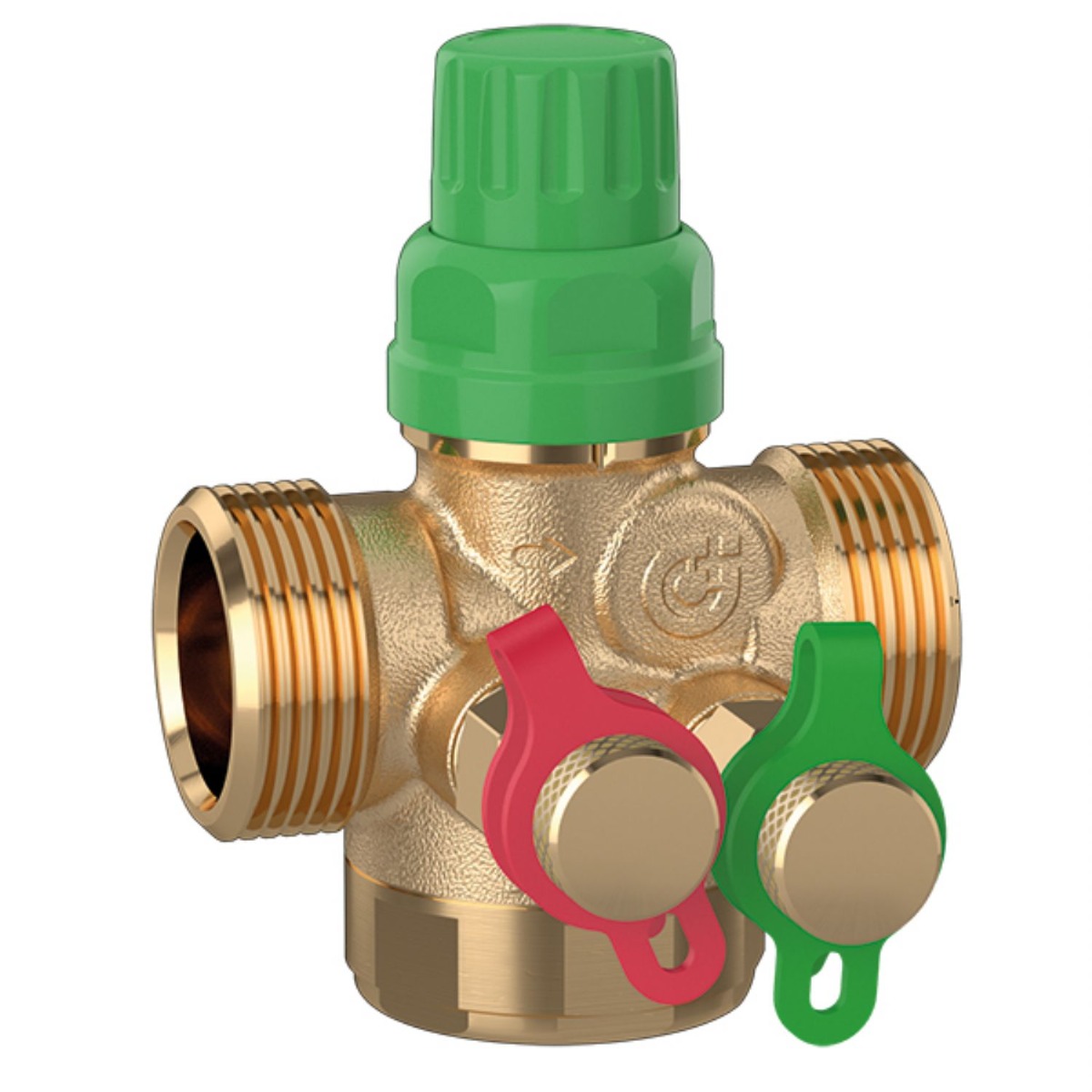

| 145420 | PICV 32mm | DN15 3/8″ |
Technical Downloads
- 145 Series (PICV) Pre-commission & commission
- 145 Flowmatic PICV Data Sheet
- 145 Series (PICV) Pre-commission & commission
