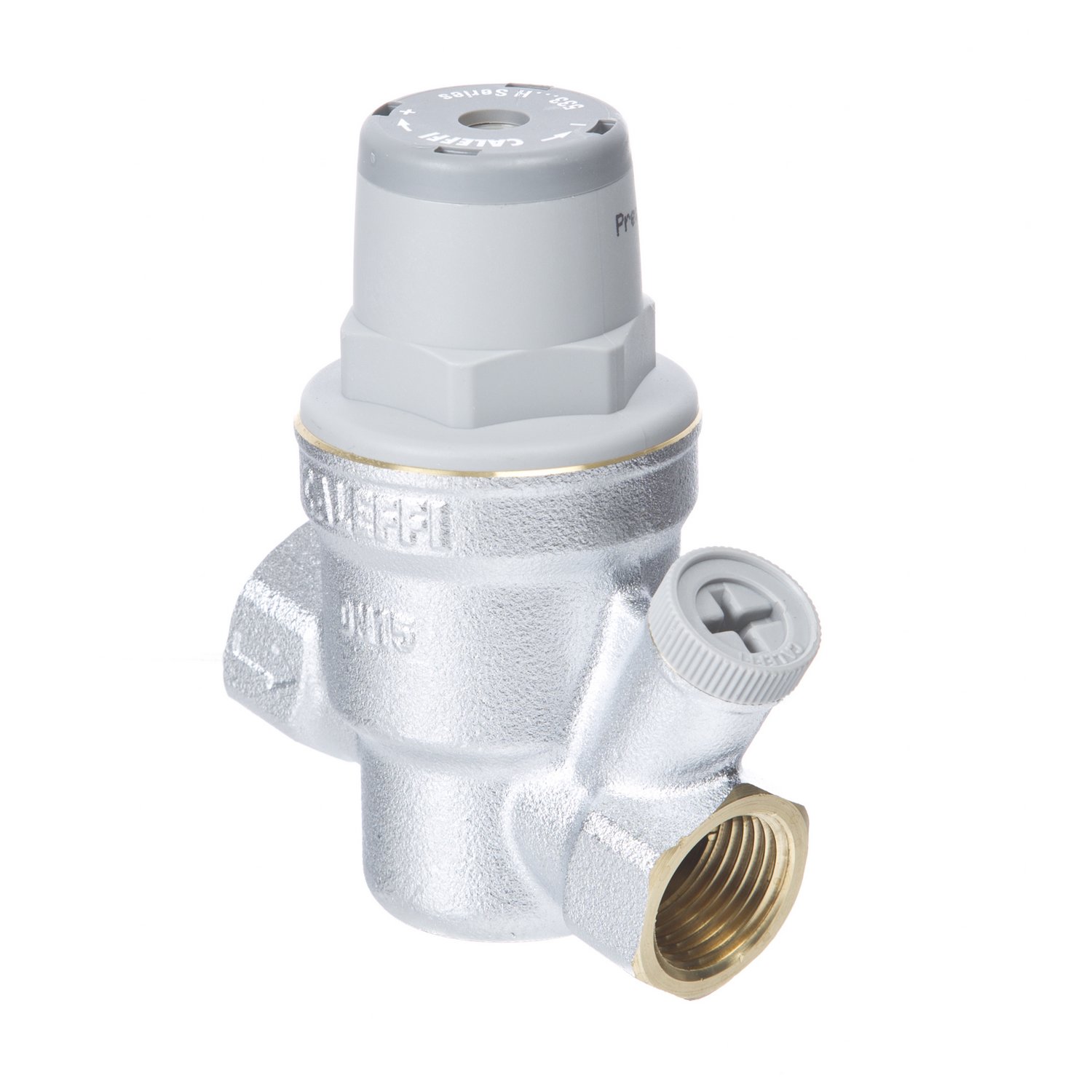

PRESCAL - SERIES 533 HIGH PERFORMANCE PRESSURE REDUCING VALVES
The series 533 high performance range of pressure reducing valves is designed for domestic and semi-commercial applications.
● Max inlet pressure: 16 bar
● Max temperature: 80°C
● Outlet adj range: 1 - 5.5 bar
● Pressure gauge connection: G¼˝
● EN 1567 approved
● High flow rate
● Low operational noise
| Reference | Name | Size | Connections | Temperature Range | Gauge | Max Pressure at Inlet | Outlet Adj Range |
|---|---|---|---|---|---|---|---|
| 533441H LTC | Prescal - series 533 high performance pressure reducing valve with gauge port | ½˝ | F X F BSP | Max 80°C | Port Only | 16bar | 1.0 - 5.5 bar |
| 533451H LTC | Prescal - series 533 high performance pressure reducing valve with gauge port | ¾″ | F X F BSP | Max 80°C | Port Only | 16bar | 1.0 - 5.5 bar |
| 533241H LTC | Prescal - series 533 high performance pressure reducing valve with pressure gauge | ½˝ | F X F BSP | Max 80°C | with Gauge | 16bar | 1.0 - 5.5 bar |
| 103-2020 | Prescal - series 533 high performance pressure reducing valve with gauge | 15mm | Press Fit | Max 80°C | with Gauge | 16bar | 1.0 - 5.5 bar |
| 533251H LTC | Prescal - series 533 high performance pressure reducing valve with pressure gauge | ¾″ | F X F BSP | Max 80°C | with Gauge | 16bar | 1.0 - 5.5 bar |
| 103-2021 | Prescal - series 533 high performance pressure reducing valve with gauge | 22mm | Press Fit | Max 80°C | with Gauge | 16bar | 1.0 - 5.5 bar |
Technical Downloads
- 533H PRV Comp Submittal Data
- 533H Extended IOM
- 533H High Performance Pressure Reducing Valve Data Sheet
- 533H IOM
- #002 Static & Dynamic Control (PRV's) - Knowing The Facts
- 533H PRV Threaded Submittal Data
