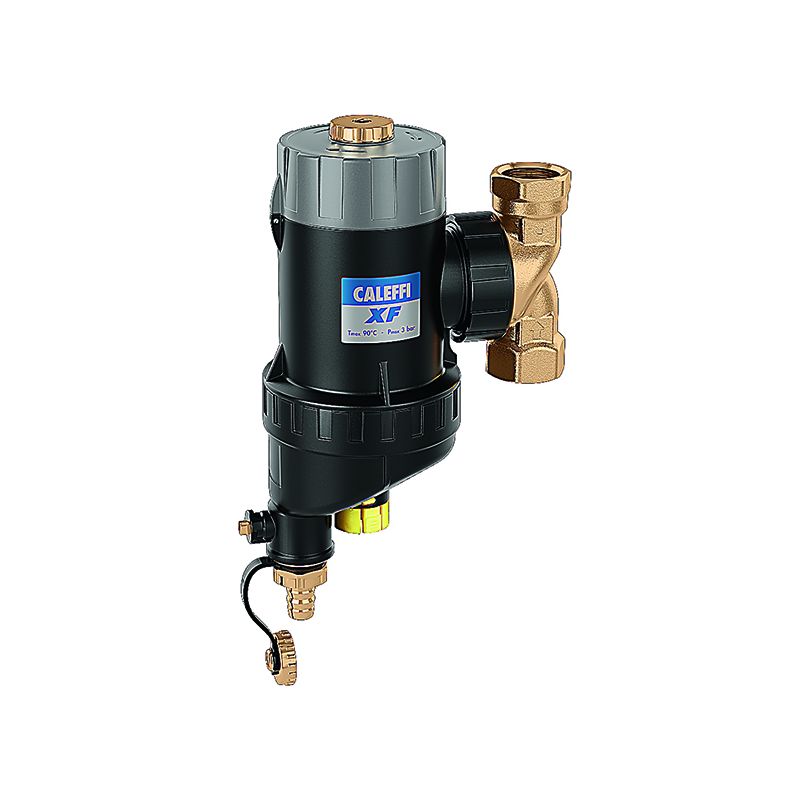

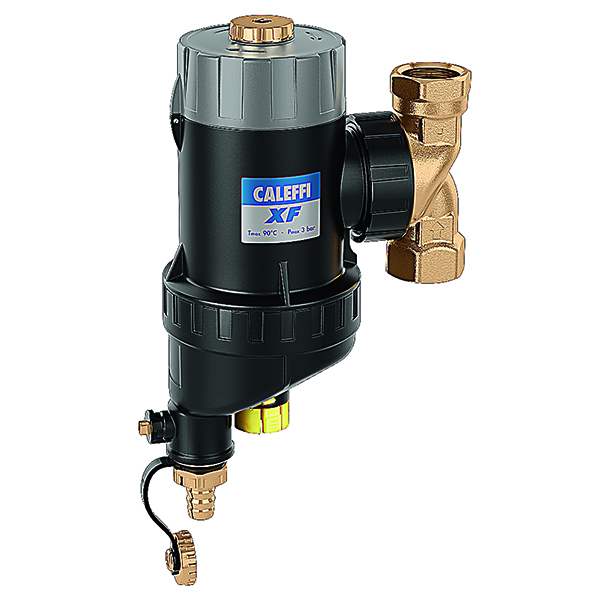

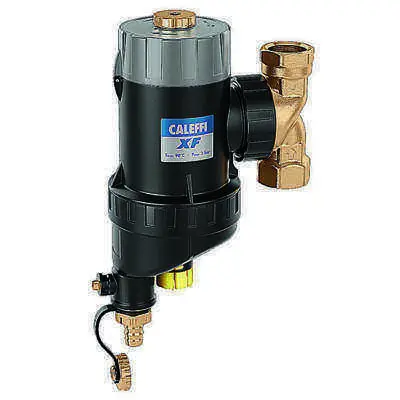

CALEFFI XF

The CALEFFI XF filter separates impurities in the system right from the first passage. Its large filtration surface and impurity separation upstream of the filter also minimises the problem of mesh clogging.

System water is treated in three distinct steps: an initial separation mesh, a central magnet and an outlet filter.

CALEFFI XF continuously protects the generator and devices from any impurities that form in the hydraulic circuit. It can be adjusted for horizontal or vertical installation.

Internal cleaning brushes mean that maintenance can be carried out without shutting off the device.

● Medium: water glycol solutions
● Max percentage of glycol: 30%
● Max working pressure: 3 bar
● Temperature range: 5 - 90°C
● Vertical/Horizontal connection
● Polyamide 66 body

View Product Codes and Technical Documents
Grouped product items
Reference Name OD Size Connections Body
577200 Caleffi XF 22mm DN20 Vertical/Horizontal Polyamide 66
577300 Caleffi XF 28mm DN25 Vertical/Horizontal Polyamide 66
577500 Caleffi XF ¾''mm DN20 Vertical/Horizontal Polyamide 66
577600 Caleffi XF 1''mm DN25 Vertical/Horizontal Polyamide 66
577700 Caleffi XF 1¼''mm DN25 Vertical/Horizontal Polyamide 66
CBN577500 Insulation for: 577200/300/500/600/700
