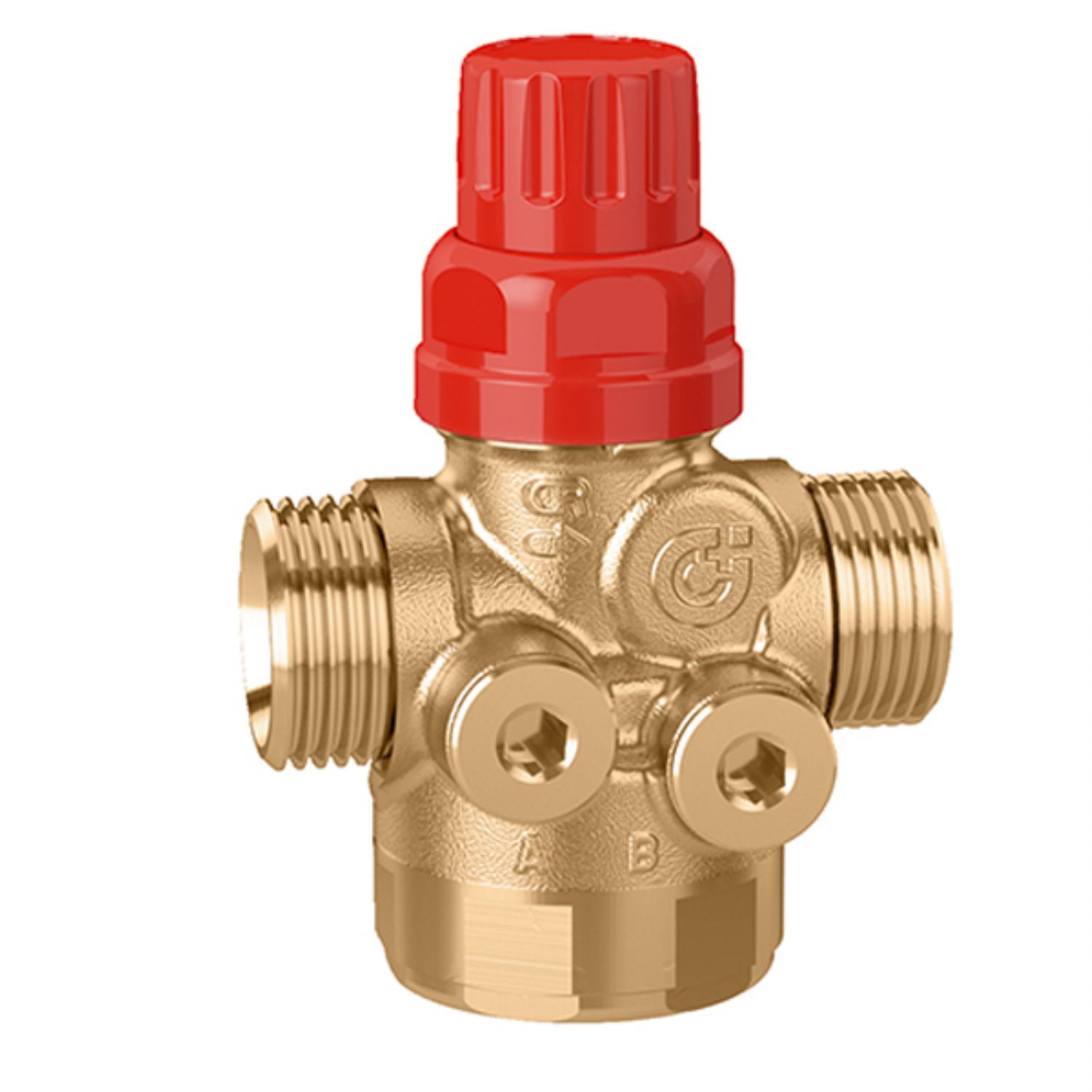

FLOWMATIC® 145 SERIES - PICV
The pressure independent control valve (PICV) is a valve comprising an automatic flow rate regulator and a control valve with actuator. The valve can adjust the flow rate and keep it constant in the presence of changing differential pressure conditions of the circuit.
Flow rate is adjusted in two different ways:
•manually on the automatic flow rate regulator, to restrict the maximum value
•automatically by the control valve in combination with a proportional (0 to 10 V) or ON/OFF actuator, in accordance with the thermal load requirements of the circuit of the system to be controlled.
The pressure independent control valve (PICV) is supplied complete with connections for upstream and downstream pressure test ports for checking of operating conditions.
| Reference | Name | Flow Rate | Max Working Pressure | Accuracy Class | Body | Size |
|---|---|---|---|---|---|---|
| 145434 H20 | FLOWMATIC® 145 Series - PICV | 0.02 - 0.20m³/h | 16 bar | +/-15% | DZR Brass Alloy | |
| 145552 H40 | FLOWMATIC® 145 Series - PICV | 0.08 — 0.4m³/h | 16 bar | +/-15% | DZR Brass Alloy | ¾″ |
| 145552 H80 | FLOWMATIC® 145 Series - PICV | 0.08 — 0.8m³/h | 16 bar | +/-15% | DZR Brass Alloy | ¾″ |
| 145552 1H2 | FLOWMATIC® 145 Series - PICV | 0.12 — 1.2m³/h | 16 bar | +/-15% | DZR Brass Alloy | ¾″ |
Technical Downloads
- 145 Series (PICV) Pre-commission & commission
- 145 Flowmatic PICV Data Sheet
- 145 Series (PICV) Pre-commission & commission
Product Images
Click to download
FLOWMATIC® 145 SERIES - PICV FAQs
There are no product specific FAQs currently available.
Please, view our general FAQs page to find the answer to your question.
