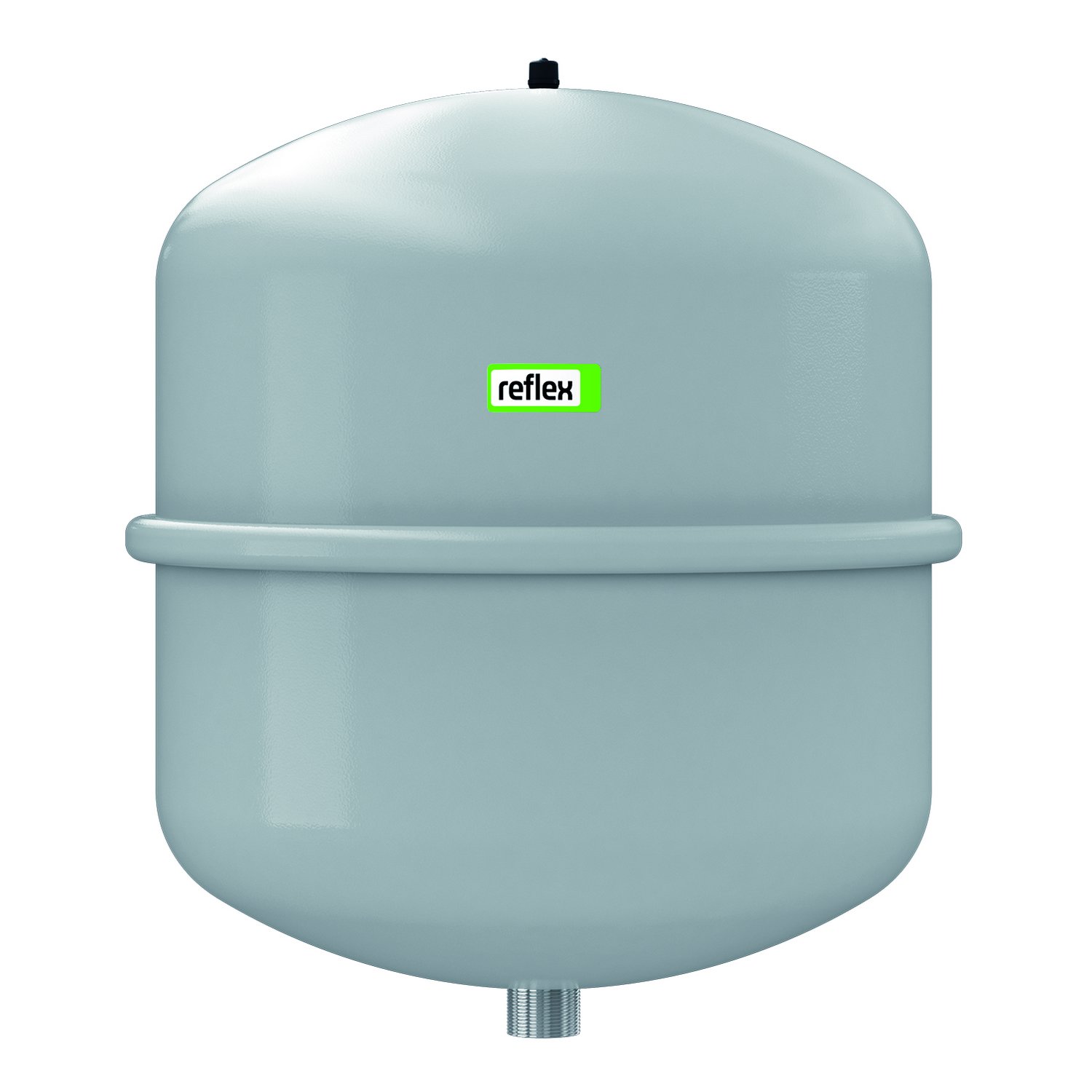

HEATING EXPANSION VESSEL 8-25 LITRES
● Test pressure: 1.5 x max working pressure
● Max flow operating temperature: 120°C
● Max vessel operating temperature: 70°C
● Factory pre-charge: 1.5 bar - nitrogen
● Membrane: Synthetic Rubber
| Reference | Name | Connections | Max Working Pressure | Weight Dry (Kg) | Cap (L) | Mounting Bracket | Dia (Ø D mm) | Ht (Ø H mm) |
|---|---|---|---|---|---|---|---|---|
| HV8C | Heating expansion vessel 8 - 25 litres | R ¾″ | 4 bar | 1.7 | 8 | No | 272 | 235 |
| HV12C | Heating expansion vessel 8 - 25 litres | R ¾″ | 4 bar | 2.3 | 12 | No | 272 | 315 |
| HV18C | Heating expansion vessel 8 - 25 litres | R ¾″ | 4 bar | 2.8 | 18 | No | 308 | 365 |
| HV25C | Heating expansion vessel 8 - 25 litres | R ¾″ | 4 bar | 3.5 | 25 | No | 308 | 485 |
| HVB8C | Heating expansion vessel 8 - 25 litres | R ¾″ | 4 bar | 1.7 | 8 | Yes | 272 | 235 |
| HVB12C | Heating expansion vessel 8 - 25 litres | R ¾″ | 4 bar | 2.3 | 12 | Yes | 272 | 315 |
| HVB18C | Heating expansion vessel 8 - 25 litres | R ¾″ | 4 bar | 2.8 | 18 | Yes | 308 | 365 |
| HVB25C | Heating expansion vessel 8 - 25 litres | R ¾″ | 4 bar | 3.5 | 25 | Yes | 308 | 485 |
Technical Downloads
- HV C Heating Exp Vessel 8 to 25 Litre Submittal Data
- Reflex Expansion Vessel IOM
- HV C Heating Expansion Vessels 8 to 140 Data Sheet
- HV Heating Expansion Vessels 8 to 140
- HV C Heating Exp Vessel 8 to 25 Litre Submittal Data
Product Images
Click to download
HEATING EXPANSION VESSEL 8-25 LITRES FAQs
There are no product specific FAQs currently available.
Please, view our general FAQs page to find the answer to your question.
HEATING EXPANSION VESSEL 200-800 LITRES
● Test pressure: 1.5 x max working pressure
● Max flow operating temperature: 120°C
● Max vessel operating temperature: 70°C
● Factory pre-charge: 1.5 bar - nitrogen
● With feet
● 300l - 800l vessels palletised
● Membrane: Synthetic Rubber
HEATING EXPANSION VESSEL 35-140 LITRES
● Test pressure: 1.5 x max working pressure
● Max flow operating temperature: 120°C
● Max vessel operating temperature: 70°C
● Factory pre-charge: 1.5 bar - nitrogen
● With feet
● Membrane: Synthetic Rubber
