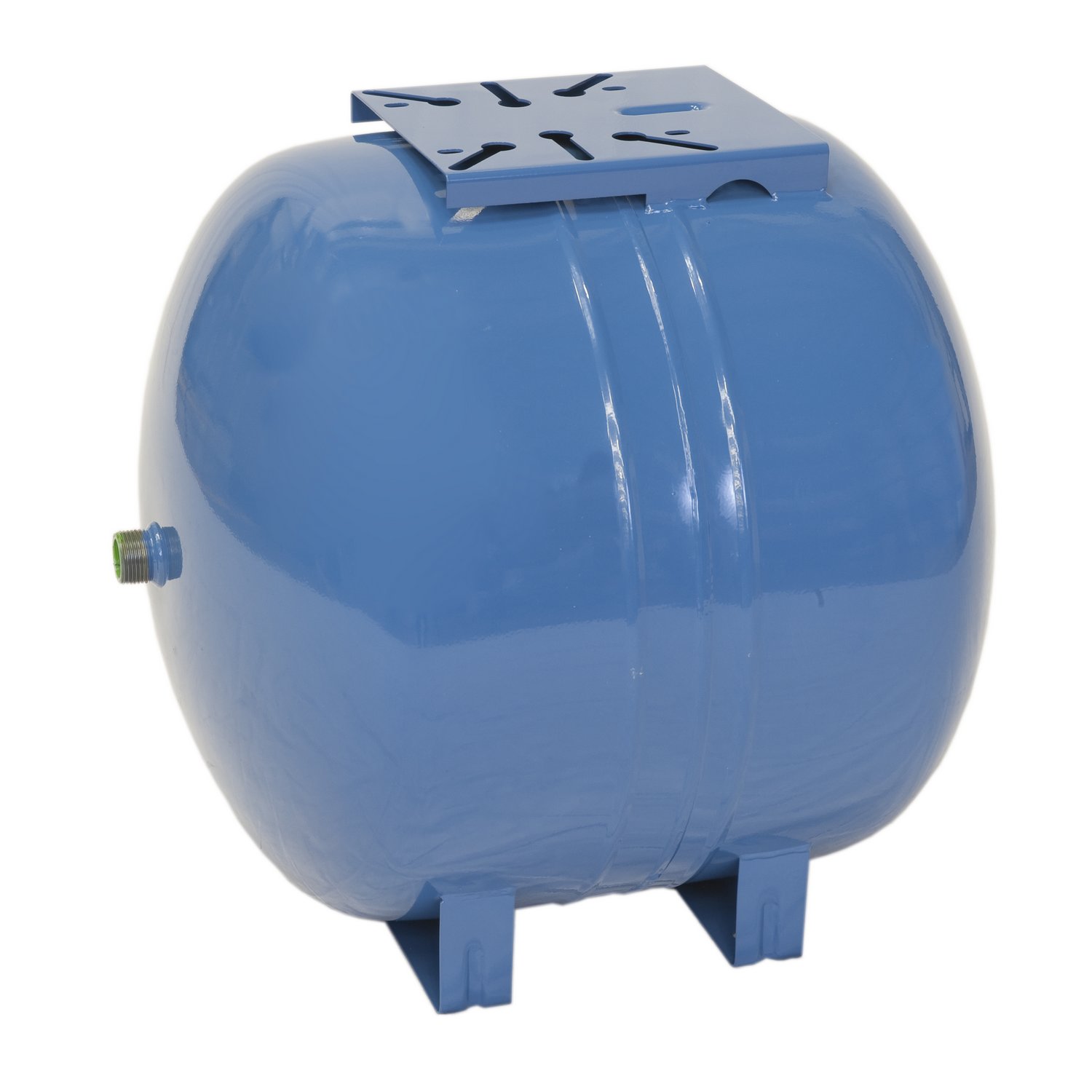

HORIZONTAL POTABLE WATER EXPANSION VESSEL 25-100 LITRES
● Max working pressure: 10 bar
● Max vessel operating temperature: 70°C
● Factory pre-charge: 2.0 bar - nitrogen
● System water connection thread: BS EN ISO 228 - male
● Membrane: Fixed Butyl
| Reference | Name | Size | Connections | Max Working Pressure | Weight Dry (Kg) | Dia (Ø D mm) | Ht (Ø H mm) |
|---|---|---|---|---|---|---|---|
| PVH25W | Horizontal potable water expansion vessel 25 - 100 litres | 25 L | G ¾″ | 10 bar | 5.5 | 280 | 520 |
| PVH50W | Horizontal potable water expansion vessel 25 - 100 litres | 50 L | G 1″ | 10 bar | 15 | 409 | 503 |
| PVH80W | Horizontal potable water expansion vessel 25 - 100 litres | 80 L | G 1″ | 10 bar | 18 | 480 | 595 |
| PVH100W | Horizontal potable water expansion vessel 25 - 100 litres | 100 L | G 1″ | 10 bar | 21 | 480 | 705 |
Technical Downloads
- PVH W Potable Exp Vessel 25 to 100 Litre Submittal Data
- Reflex Expansion Vessel IOM
- PVH W Expansion Vessel - Potable Water Horizontal Data Sheet
- PVH W Potable Exp Vessel 25 to 100 Litre Submittal Data
Product Images
Click to download
HORIZONTAL POTABLE WATER EXPANSION VESSEL 25-100 LITRES FAQs
There are no product specific FAQs currently available.
Please, view our general FAQs page to find the answer to your question.
VERTICAL POTABLE WATER EXPANSION VESSEL 50-1000 LITRES
● Max working pressure: 10 bar
● Max vessel operating temperature: 70°C
● Factory pre-charge: 4.0 bar - nitrogen
● Membrane: Replaceable Butyl (PV140W: Fixed Butyl)
● System water connection thread: BS EN ISO 228 - male 140 litre size: BS EN 10226 - male
● Top connection 80 litre +
● 300l - 1000l vessels palletised
VERTICAL POTABLE WATER EXPANSION VESSEL 8-33 LITRES
● Max working pressure: 10 bar
● Max vessel operating temperature: 70°C
● Factory pre-charge: 4.0 bar - nitrogen
● System water connection thread: BS EN ISO 228 - male
● Membrane: Fixed Butyl
