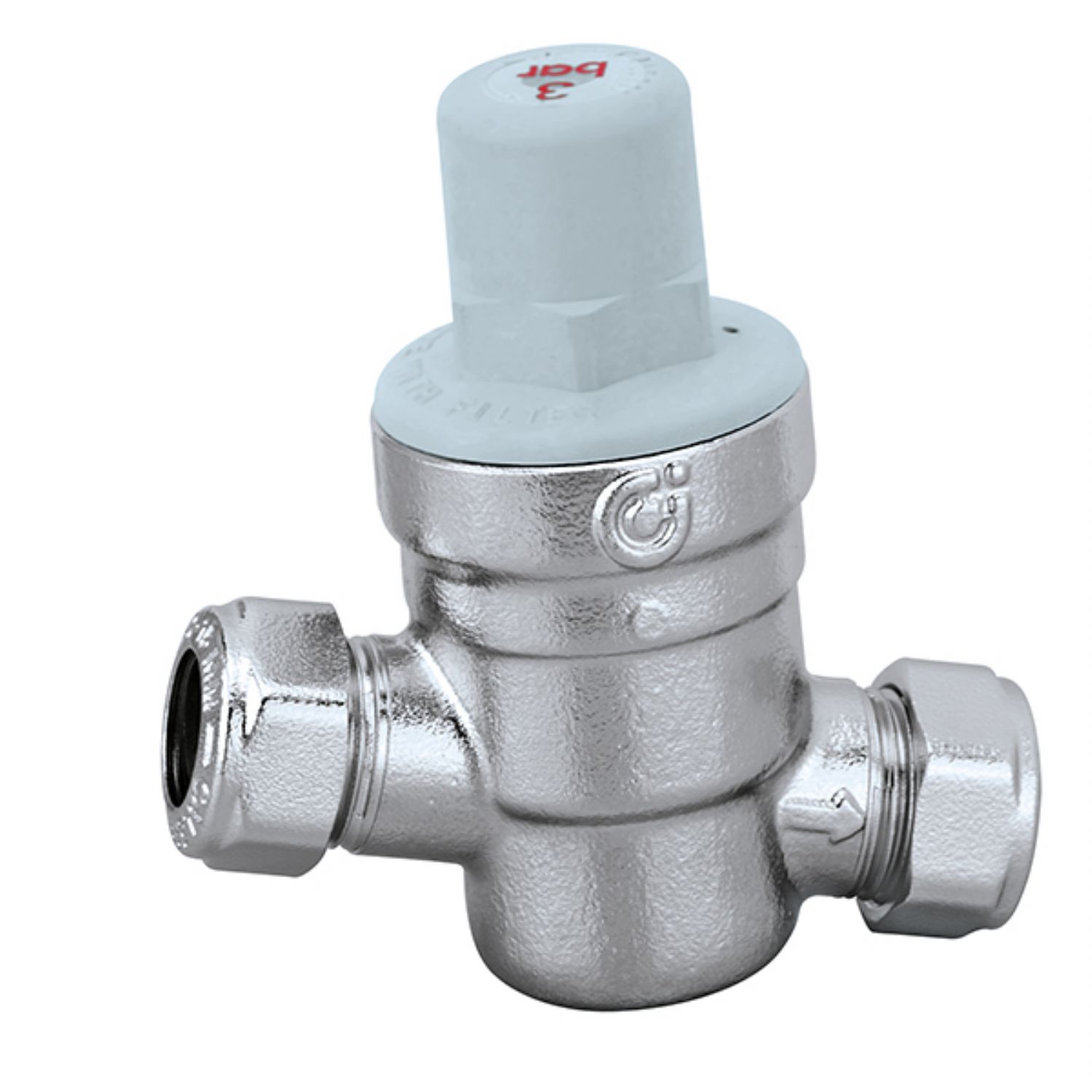

SERIES 533 COLD PRESSURE REDUCING VALVE
Pressure reducing valves are installed in residential water systems to reduce and stabilise inlet pressures from mains water supplies or boosted water systems, which generally are too high and variable for domestic appliances to function correctly.
The 533 Cold series is specially designed for cold services in houses or apartments to reduce or equalise the cold water supply and prevent excessive pressure at outlets such as taps and showers.
● Max inlet pressure: 16 bar
● Max temperature: 40°C
● Outlet adj range: 1 - 6 bar
● Pressure gauge connection: G¼˝
| Reference | Name | Size | Connections | Temperature Range | Gauge | Max Pressure at Inlet | Outlet Adj Range | Accreditations |
|---|---|---|---|---|---|---|---|---|
| 533641 | Series 533 cold pressure reducing valve | 15mm | Compression | Max 40°C | No Port | 16bar | 1.0 - 6.0 bar |  |
| 533651 | Series 533 cold pressure reducing valve | 22mm | Compression | Max 40°C | No Port | 16bar | 1.0 - 6.0 bar | |
| 533741 | Series 533 cold pressure reducing valve | 15mm | Compression | Max 40°C | Port Only | 16bar | 1.0 - 6.0 bar | |
| 533751 | Series 533 cold pressure reducing valve | 22mm | Compression | Max 40°C | Port Only | 16bar | 1.0 - 6.0 bar | |
| 533841 | Series 533 cold pressure reducing valve | 15mm | Compression | Max 40°C | With Gauge | 16bar | 1.0 - 6.0 bar | |
| 533851 | Series 533 cold pressure reducing valve | 22mm | Compression | Max 40°C | With Gauge | 16bar | 1.0 - 6.0 bar | |
| 533041 | Series 533 cold pressure reducing valve | ½″ | F BSP | Max 40°C | No Port | 16bar | 1.0 - 6.0 bar | |
| 533051 | Series 533 cold pressure reducing valve | ¾˝ | F BSP | Max 40°C | No Port | 16bar | 1.0 - 6.0 bar | |
| 533241 | Series 533 cold pressure reducing valve | ½˝ | F X F BSP | Max 40°C | With Gauge | 16bar | 1.0 - 6.0 bar | |
| 533251 | Series 533 cold pressure reducing valve | ¾″ | F X F BSP | Max 40°C | With Gauge | 16bar | 1.0 - 6.0 bar | |
| 533441 | Series 533 cold pressure reducing valve | ½″ | F X F BSP | Max 40°C | Port Only | 16bar | 1.0 - 6.0 bar | |
| 533451 | Series 533 cold pressure reducing valve | ¾″ | F X F BSP | Max 40°C | Port Only | 16bar | 1.0 - 6.0 bar | |
| 103-2010 | 103 Pressure Reducing Valve | 15mm | Press Fit | Max 40°C | With Gauge | 16 Bar | 1-6 Bar | |
| 103-2011 | 103 Pressure Reducing Valve | 22mm | Press Fit | Max 40°C | With Gauge | 16 Bar | 1-6 Bar |
Technical Downloads
- 533 Cold PRV Comp Submittal Data
- 533 Pressure Reducing Valve IOM
- 533 Cold Pressure Reducing Valve Data Sheet
- 533H IOM
- #002 Static & Dynamic Control (PRV's) - Knowing The Facts
