PRESCAL - SERIES 533 HIGH TEMPERATURE PRESSURE REDUCING VALVE WITH COMPRESSION ENDS
The series 533 high performance range of pressure reducing valves is designed for domestic and semi-commercial applications.
● Max inlet pressure: 16 bar
● Max temperature: 80°C
● Outlet adj range: 1 - 5.5 bar
● Pressure gauge connection: G¼˝
● EN 1567 approved
Reference | Name | Size | Connections | Temperature Range | Gauge | Max Pressure at Inlet | Outlet Adj Range |
---|---|---|---|---|---|---|---|

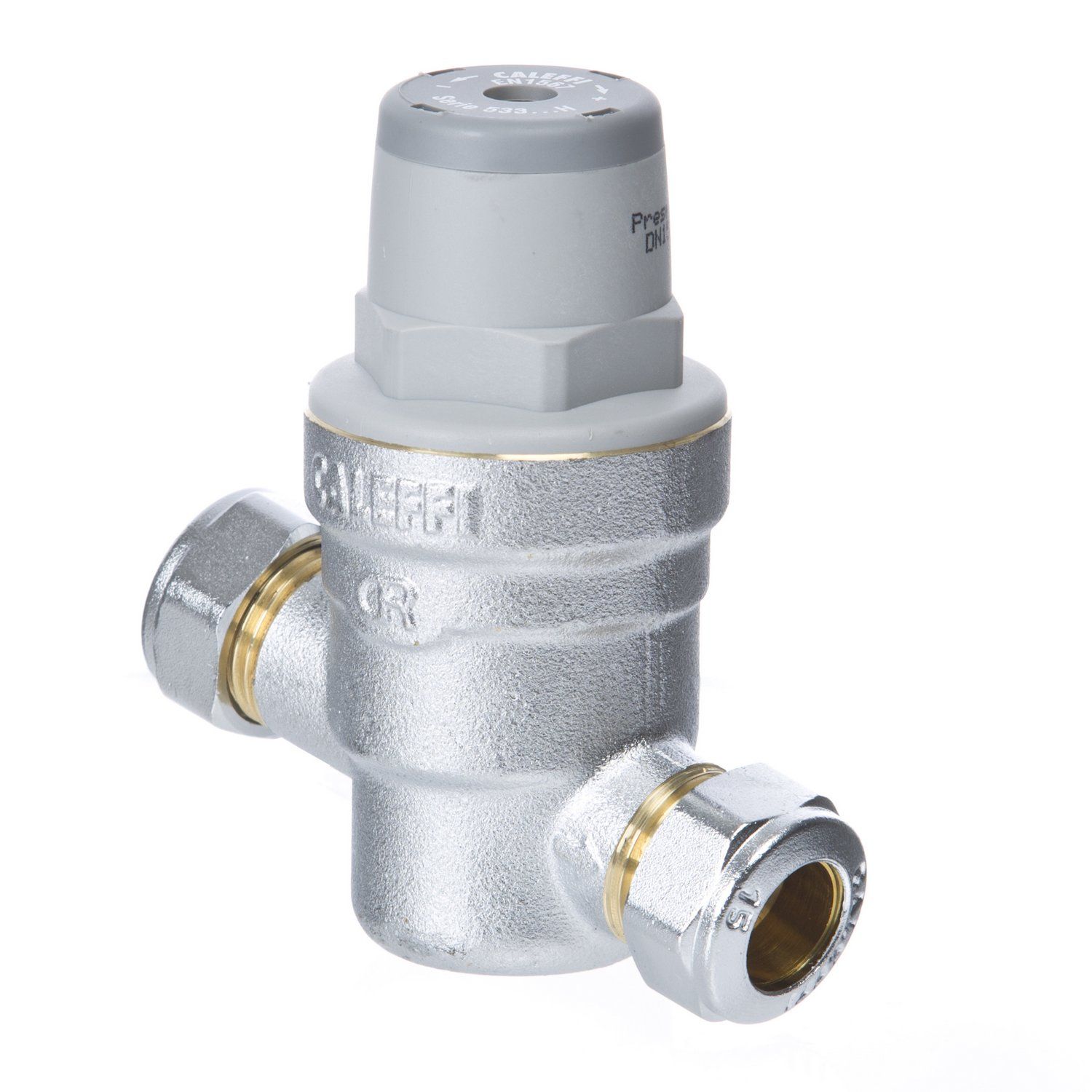

533641H | Prescal - series 533 high performance pressure reducing valve with compression ends | 15mm | Compression | Max 80°C | No Port | 16 bar | 1.0 - 5.5 bar |
533651H | Prescal - series 533 high performance pressure reducing valve with compression ends | 22mm | Compression | Max 80°C | No Port | 16 bar | 1.0 - 5.5 bar |

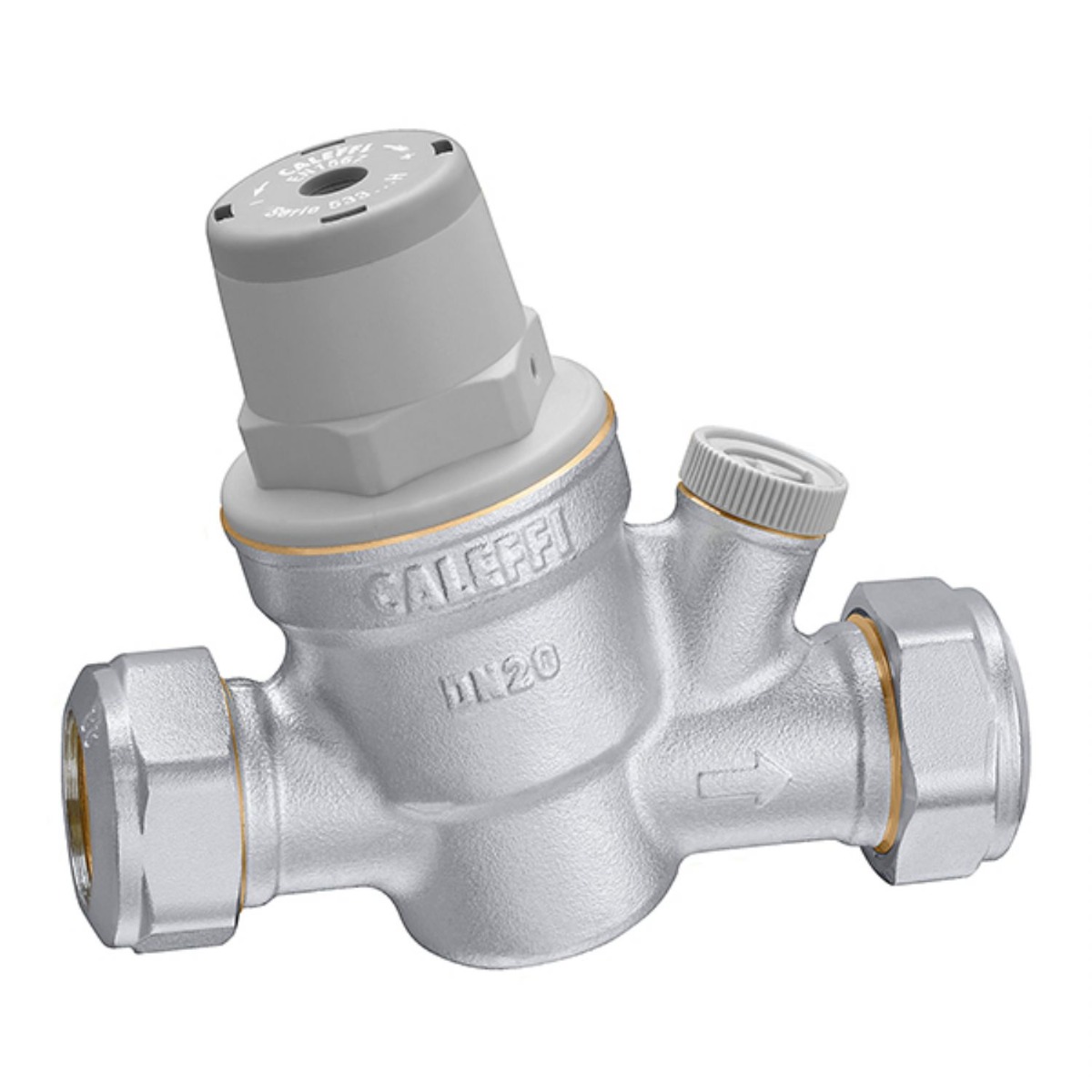

533741H | Prescal - series 533 high performance pressure reducing valve with compression ends and gauge port | 15mm | Compression | Max 80°C | Port Only | 16bar | 1.0 - 5.5 bar |
533751H | Prescal - series 533 high performance pressure reducing valve with compression ends and gauge port | 22mm | Compression | Max 80°C | Port Only | 16bar | 1.0 - 5.5 bar |
533761H | Prescal - series 533 high performance pressure reducing valve with compression ends and gauge port | 28mm | Compression | Max 80°C | Port Only | 16bar | 1.0 - 5.5 bar |

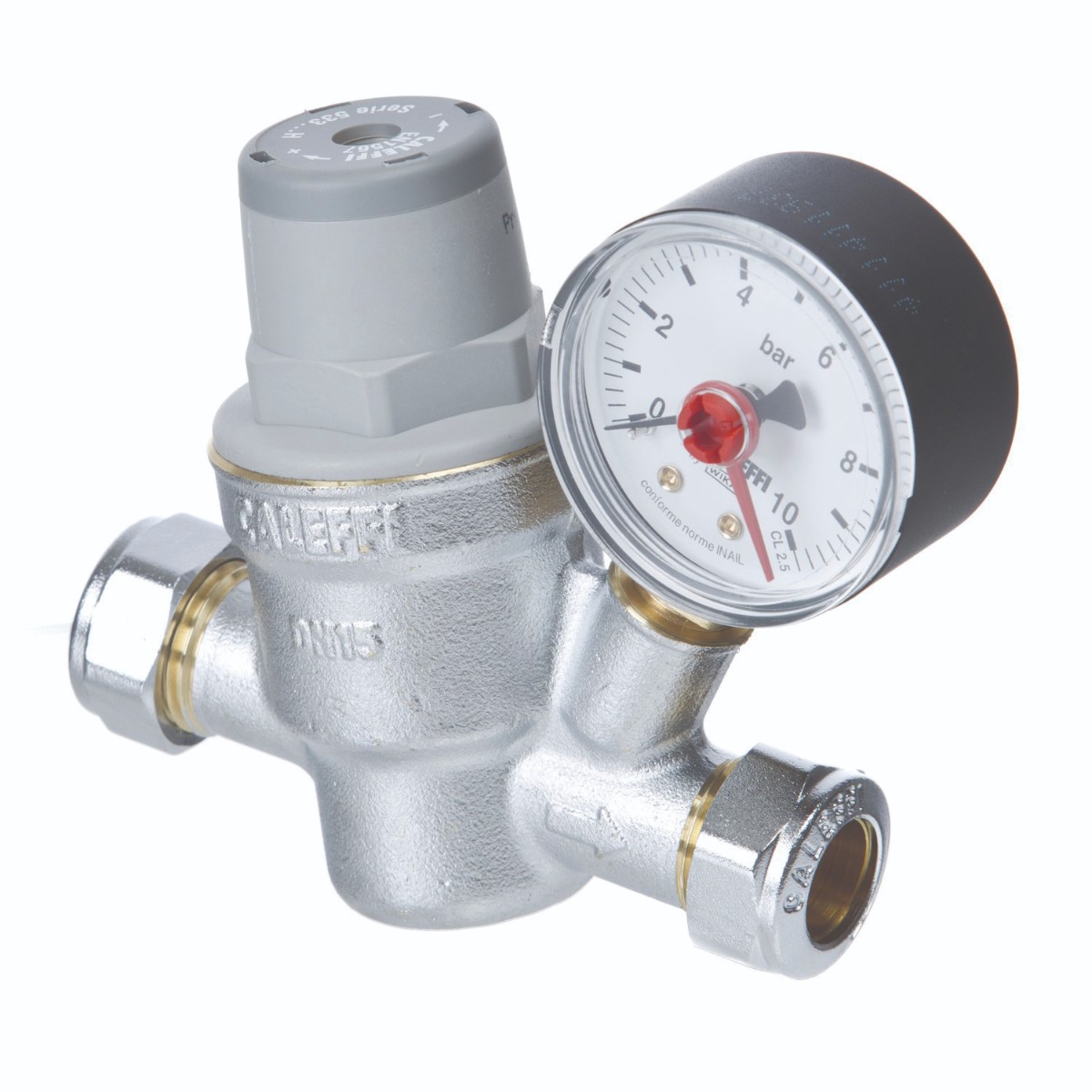

533841H | Prescal - series 533 high performance pressure reducing valve with compression ends and pressure gauge | 15mm | Compression | Max 80°C | Yes | 16bar | 1.0 - 5.5 bar |
533851H | Prescal - series 533 high performance pressure reducing valve with compression ends and pressure gauge | 22mm | Compression | Max 80°C | Yes | 16bar | 1.0 - 5.5 bar |
533861H | Prescal - series 533 high performance pressure reducing valve with compression ends and pressure gauge | 28mm | Compression | Max 80°C | Yes | 16bar | 1.0 - 5.5 bar |
Technical Downloads
- 533H PRV Comp Submittal Data
- 533H Extended IOM
- 533H High Performance Pressure Reducing Valve Data Sheet
- 533H IOM
- 533H PRV IOM
- #002 Static & Dynamic Control (PRV's) - Knowing The Facts
- 533H PRV Comp Submittal Data
Product Images
