PRESCAL - SERIES 535 DIAL UP PRESSURE REDUCING VALVE
The series 535 range of dial up pressure reducing valves is designed for semi-commercial and industrial applications.
● Max inlet pressure: 25 Bar
● Max temperature: 40°C
● Outlet adj range: 1 - 6 bar
● Pressure gauge connection: G¼˝
● BS EN 1567 approved
| Reference | Name | Size | Connections | Temperature Range | Gauge | Max Pressure at Inlet | Outlet Adj Range |
|---|---|---|---|---|---|---|---|

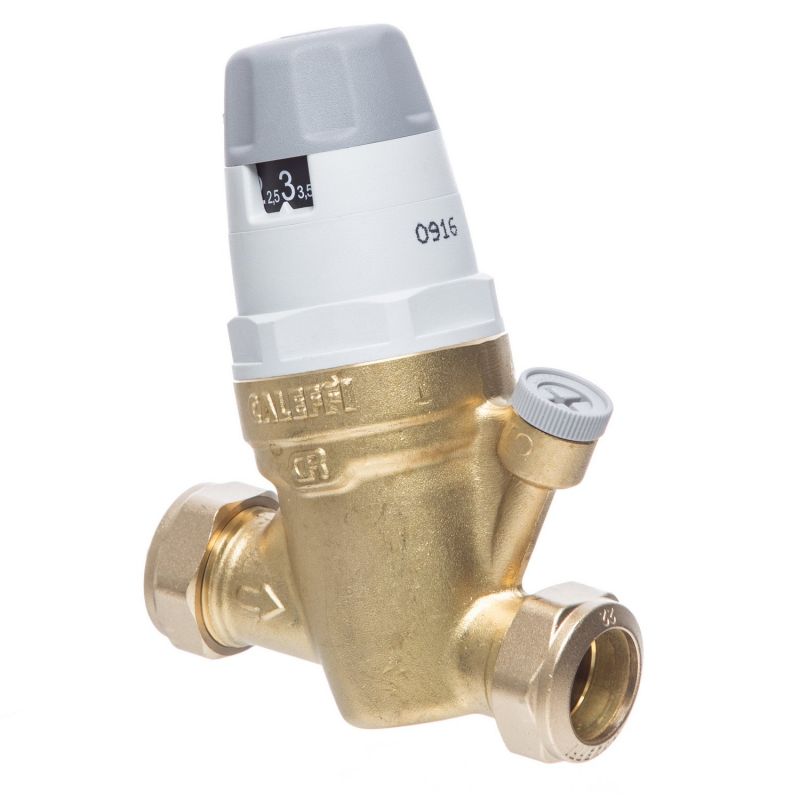

| 535022 | Prescal - series 535 dial up pressure reducing valve | 22mm | Compression | Max 40°C | Port Only | 25bar | 1.0 - 6.0 bar |
| 535041 | Prescal - series 535 dial up pressure reducing valve | ½˝ | M x M BSP | Max 40°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |

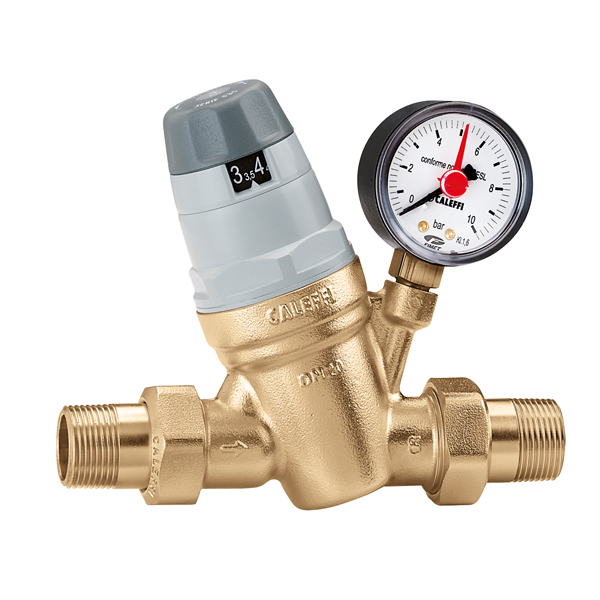

| 535051 | Prescal - series 535 dial up pressure reducing valve | ¾″ | M x M BSP | Max 40°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |
| 535061 | Prescal - series 535 dial up pressure reducing valve | 1″ | M x M BSP | Max 40°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |
| 535071 | Prescal - series 535 dial up pressure reducing valve | 1¼″ | M x M BSP | Max 40°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |
| 535081 | Prescal - series 535 dial up pressure reducing valve | 1½″ | M x M BSP | Max 40°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |
| 535091 | Prescal - series 535 dial up pressure reducing valve | 2″ | M x M BSP | Max 40°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |
| 535040 | Prescal - series 535 dial up pressure reducing valve | ½˝ | M x M BSP | Max 40°C | Port Only | 25 Bar | 1.0 - 6.0 bar |
| 535050 | Prescal - series 535 dial up pressure reducing valve | ¾″ | M x M BSP | Max 40°C | Port Only | 25 Bar | 1.0 - 6.0 bar |
| 535060 | Prescal - series 535 dial up pressure reducing valve | 1″ | M x M BSP | Max 40°C | Port Only | 25 Bar | 1.0 - 6.0 bar |
| 535070 | Prescal - series 535 dial up pressure reducing valve | 1¼″ | M x M BSP | Max 40°C | Port Only | 25 Bar | 1.0 - 6.0 bar |
| 535080 | Prescal - series 535 dial up pressure reducing valve | 1½″ | M x M BSP | Max 40°C | Port Only | 25 Bar | 1.0 - 6.0 bar |
| 535090 | Prescal - series 535 dial up pressure reducing valve | 2″ | M x M BSP | Max 40°C | Port Only | 25 Bar | 1.0 - 6.0 bar |
| 103-2030 | 103 Dial Up Pressure Reducing Valve | 15mm | Press Fit | Max 40°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |

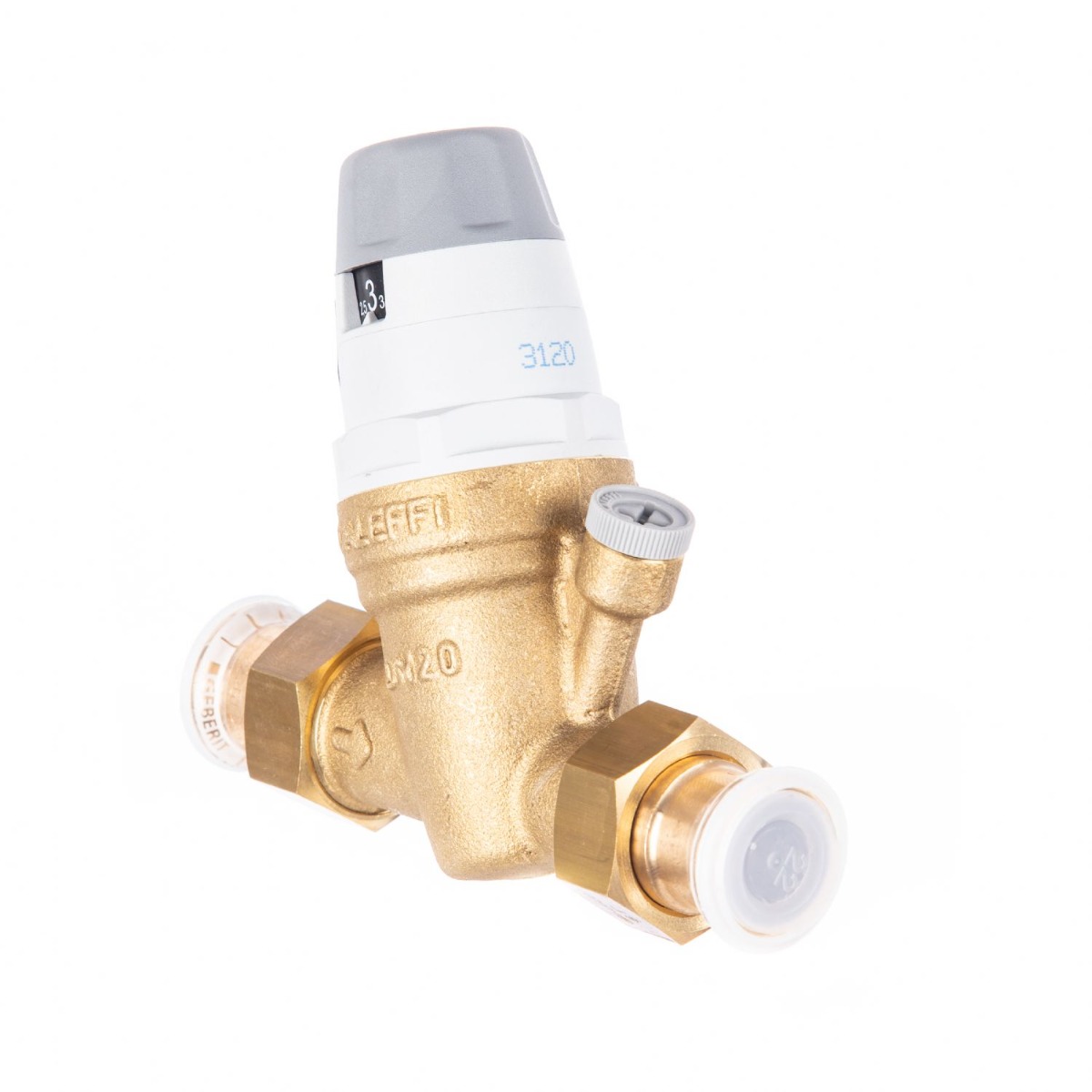

| 103-2031 | 103 Dial Up Pressure Reducing Valve | 22mm | Press Fit | Max 40°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |
| 103-2032 | 103 Dial Up Pressure Reducing Valve | 28mm | Press Fit | Max 40°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |
| 103-2033 | 103 Dial Up Pressure Reducing Valve | 35mm | Press Fit | Max 40°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |
| 103-2034 | 103 Dial Up Pressure Reducing Valve | 42mm | Press Fit | Max 40°C | Port Only | 25 Bar | 1-6 Bar |
| 103-2035 | 103 Dial Up Pressure Reducing Valve | 54mm | Press Fit | Max 40°C | Port Only | 25 Bar | 1.0 - 6.0 bar |
Technical Downloads
- 535 Cold PRV Dial Up - Submittal Data
- 535 PRV A5 IOM
- 535 Pressure Reducing Valve Extended Data Sheet
- 535 PRV A5 IOM
- 535 Cold PRV Dial Up - Submittal Data
