PRESCAL - SERIES 536 PRESSURE REDUCING VALVE
The series 536 range of pressure reducing valves is designed for semi-commercial and industrial applications.
● Max inlet pressure: 25 bar
● Max temperature: 80°C
● Outlet adj range: 0.5 - 6 bar
● Pressure gauge connection: G¼˝
● Static control
| Reference | Name | Size | Connections | Temperature Range | Gauge | Max Pressure at Inlet | Outlet Adj Range |
|---|---|---|---|---|---|---|---|
| 536040 | Prescal - series 536 pressure reducing valve. | ½˝ | M x M BSP | Max 80°C | Port Only | 25 Bar | 0.5 - 6.0 bar |
| 536050 | Prescal - series 536 pressure reducing valve | ¾″ | M x M BSP | Max 80°C | Port Only | 25 Bar | 0.5 - 6.0 bar |
| 536060 | Prescal - series 536 pressure reducing valve | 1″ | M x M BSP | Max 80°C | Port Only | 25 Bar | 0.5 - 6.0 bar |
| 536070 | Prescal - series 536 pressure reducing valve | 1¼″ | M x M BSP | Max 80°C | Port Only | 25 Bar | 0.5 - 6.0 bar |

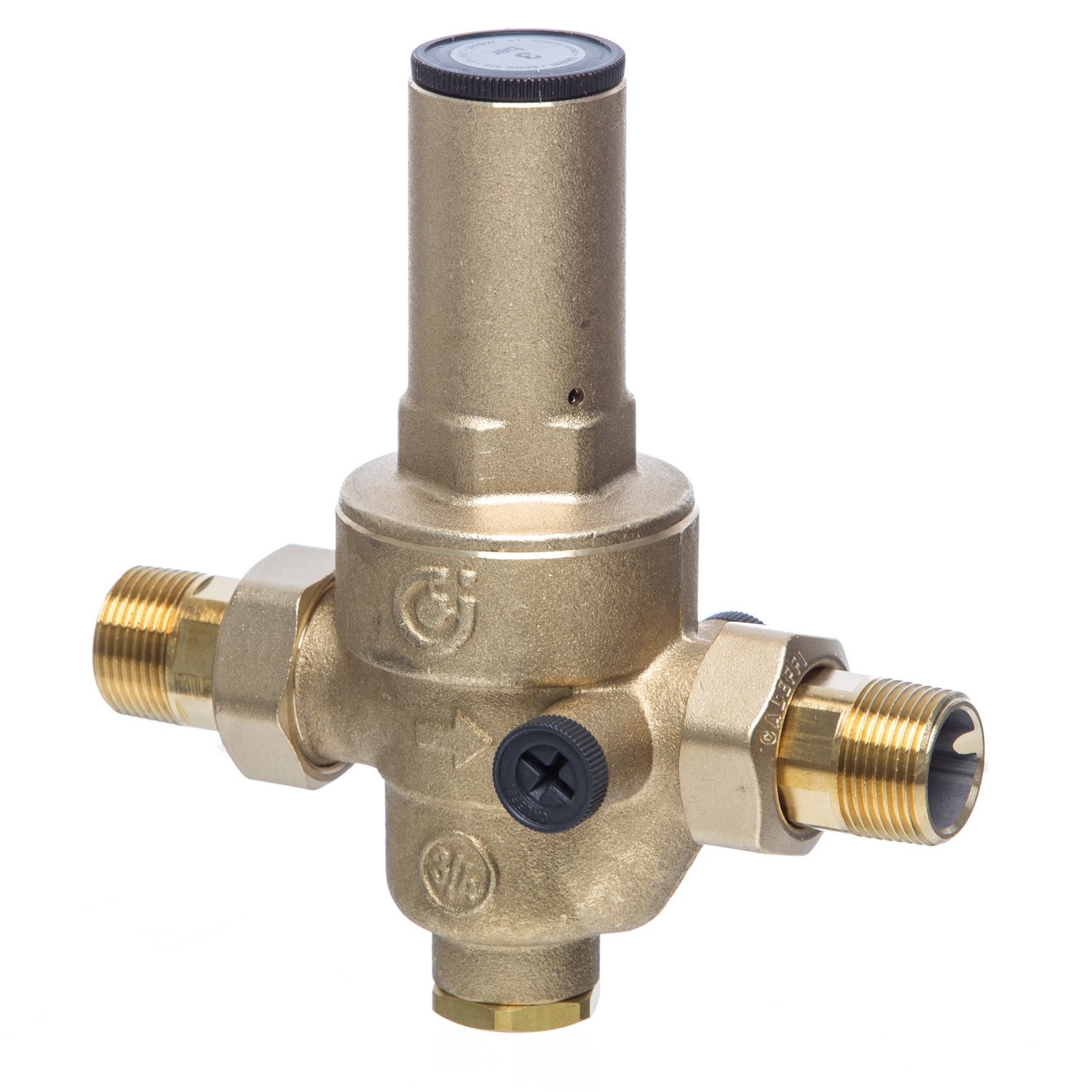

| 536080 | Prescal - series 536 pressure reducing valve | 1½″ | M x M BSP | Max 80°C | Port Only | 25 Bar | 0.5 - 6.0 bar |
| 536590 | PRESCAL® 5365 Series Pressure Reducing Valve | 2″ | M x M BSP | Max 80°C | Port Only | 25 Bar | 0.5 - 6.0 bar |
| 536041 | Prescal - series 536 pressure reducing valve | ½˝ | M x M BSP | Max 80°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |
| 536051 | Prescal - series 536 pressure reducing valve | ¾″ | M x M BSP | Max 80°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |
| 536061 | Prescal - series 536 pressure reducing valve | 1″ | M x M BSP | Max 80°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |
| 536071 | Prescal - series 536 pressure reducing valve | 1¼″ | M x M BSP | Max 80°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |
| 536081 | Prescal - series 536 pressure reducing valve | 1½″ | M x M BSP | Max 80°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |
| 536591 | PRESCAL® 5365 Series Pressure Reducing Valve | 2″ | M x M BSP | Max 80°C | 2 Gauge | 25 Bar | 1.0 - 6.0 bar |
| 536240 | Prescal - series 536 pressure reducing valve | ½˝ | F X F BSP | Max 80°C | Port Only | 25 Bar | 1.0 - 6.0 bar |
| 536250 | Prescal - series 536 pressure reducing valve | ¾″ | F X F BSP | Max 80°C | Port Only | 25 Bar | 1.0 - 6.0 bar |
| 536260 | Prescal - series 536 pressure reducing valve | 1″ | F X F BSP | Max 80°C | Port Only | 25 Bar | 1.0 - 6.0 bar |
| 536241 | Prescal - series 536 pressure reducing valve | ½˝ | F X F BSP | Max 80°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |

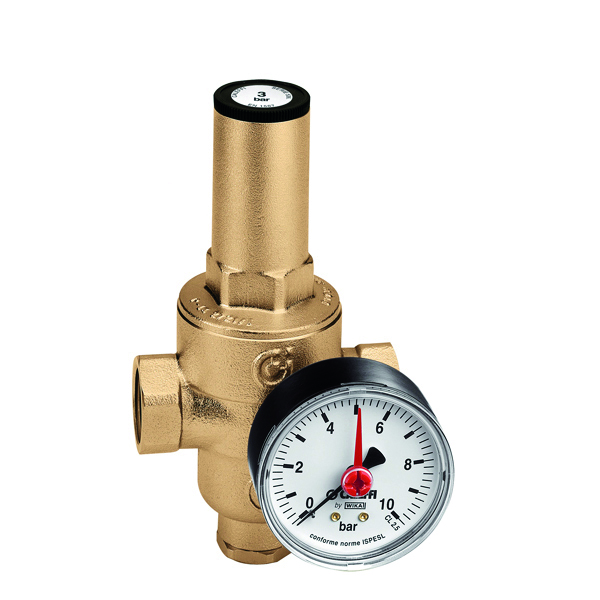

| 536251 | Prescal - series 536 pressure reducing valve | ¾″ | F X F BSP | Max 80°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |
| 536261 | Prescal - series 536 pressure reducing valve | 1″ | F X F BSP | Max 80°C | With Gauge | 25 Bar | 1.0 - 6.0 bar |
| 103-2050 | 103 Pressure Reducing Valve | 15mm | Press Fit | Max 80°C | With Gauge | 25 Bar | 0.5 - 6.0 bar |

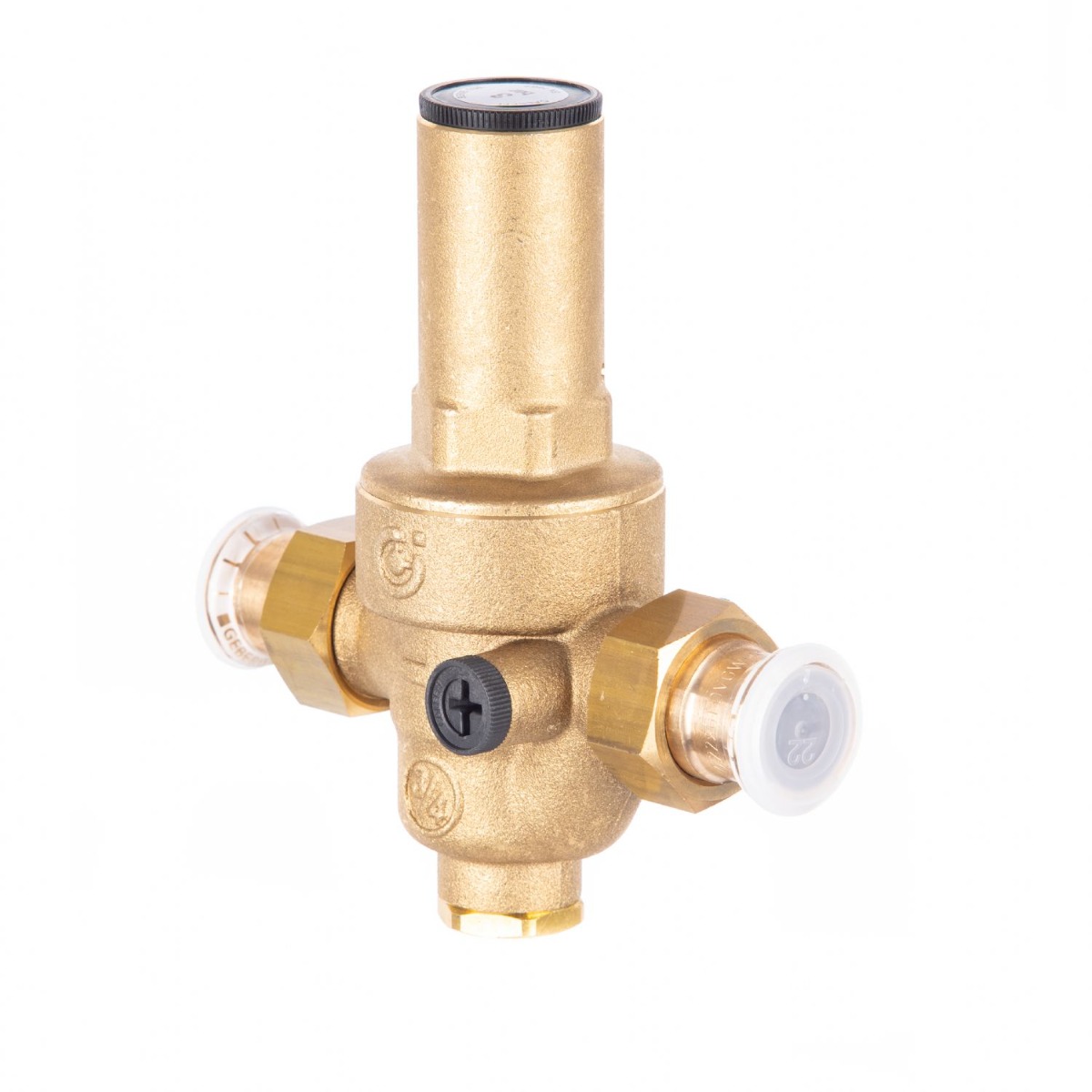

| 103-2051 | 103 Pressure Reducing Valve | 22mm | Press Fit | Max 80°C | With Gauge | 25 Bar | 0.5 - 6.0 bar |
| 103-2052 | 103 Pressure Reducing Valve | 28mm | Press Fit | Max 80°C | With Gauge | 25 Bar | 0.5 - 6.0 bar |

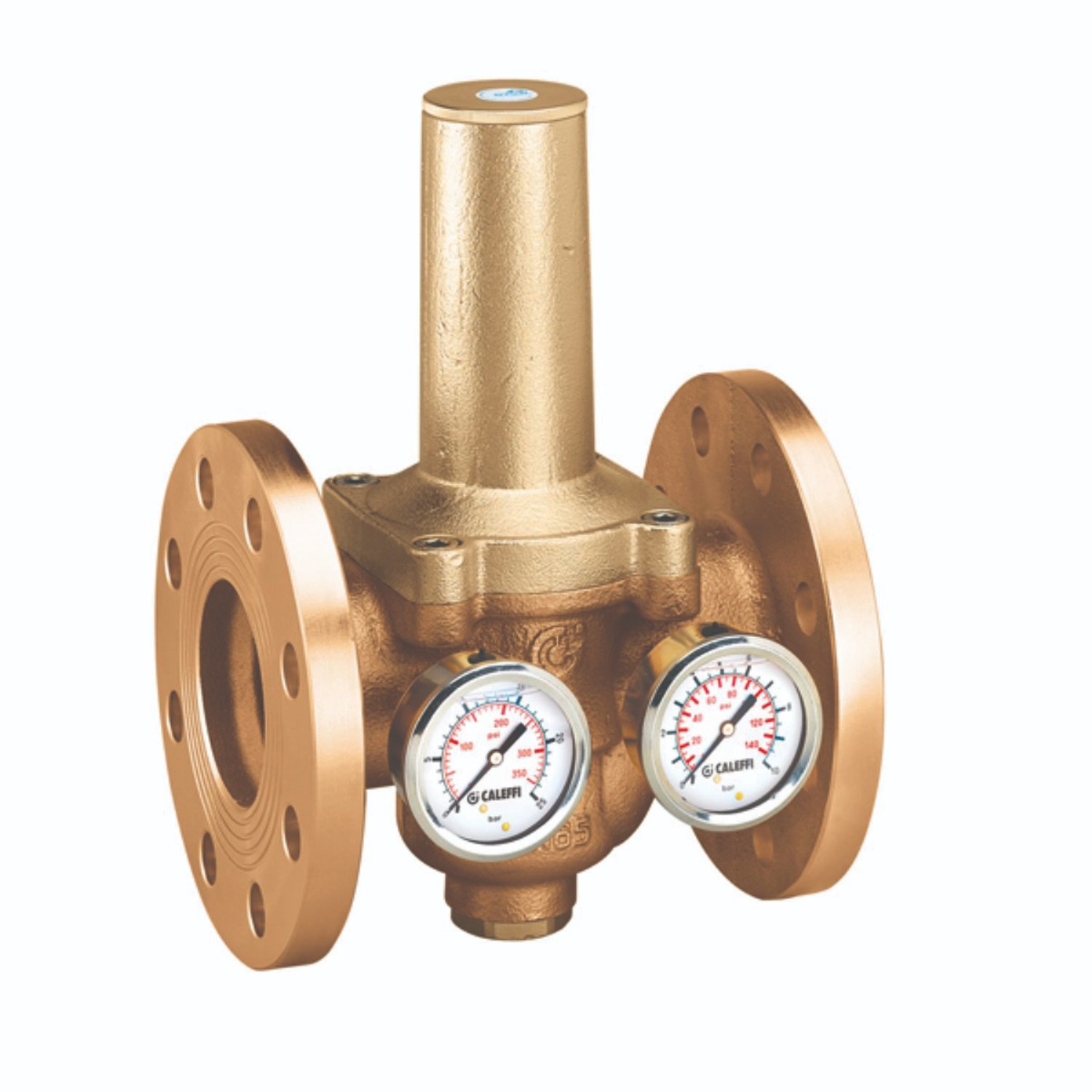

| 536660 | Prescal - series 536 pressure reducing valve | DN65 | Flanged PN16 | Max 80°C | 2 Gauge | 25 Bar | 1.0 - 6.0 bar |
Technical Downloads
- 536 PRV Screwed Submittal Data
- 536 PRV A5 IOM
- 536 Pressure Reducing Valve Data Sheet
- 536 PRV Screwed Submittal Data
- 536 PRV IOM A5
