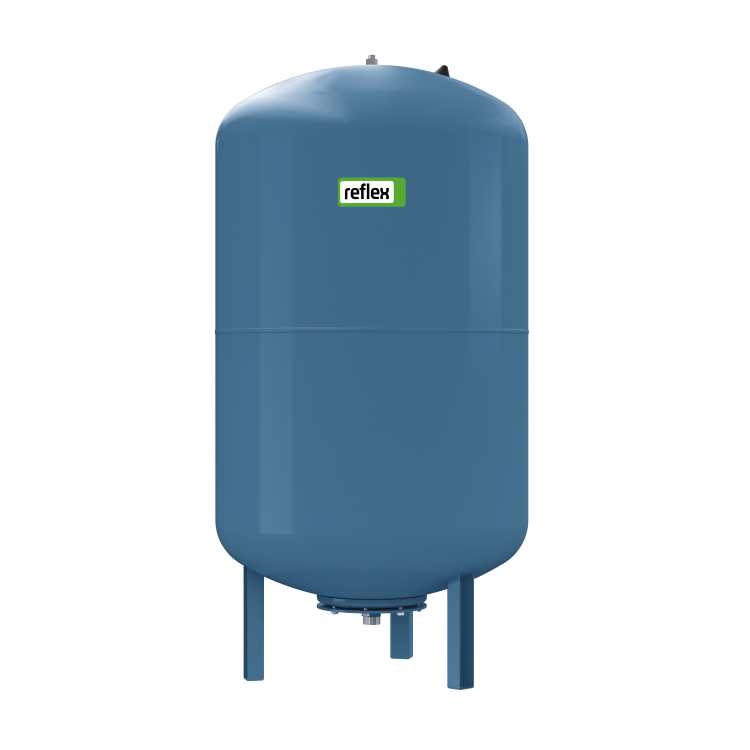

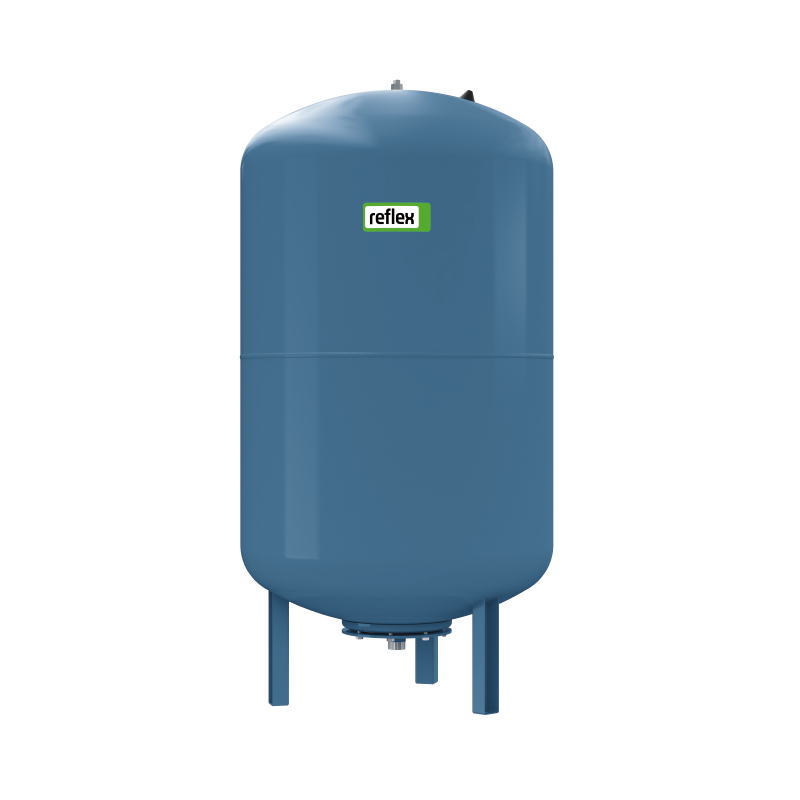

VERTICAL POTABLE WATER EXPANSION VESSEL 50-1000 LITRES
● Max working pressure: 10 bar
● Max vessel operating temperature: 70°C
● Factory pre-charge: 4.0 bar - nitrogen
● Membrane: Replaceable Butyl (PV140W: Fixed Butyl)
● System water connection thread: BS EN ISO 228 - male 140 litre size: BS EN 10226 - male
● Top connection 80 litre +
● 300l - 1000l vessels palletised
| Reference | Name | Size | Connections | Max Working Pressure | Weight Dry (Kg) | Dia (Ø D mm) | Ht (Ø H mm) |
|---|---|---|---|---|---|---|---|
| PV50W | Vertical potable water expansion vessel 50 - 500 litres | 50 L | G 1″ | 10 bar | 9.5 | 409 | 605 |
| PV60W | Vertical potable water expansion vessel 50 - 500 litres | 60 L | G 1″ | 10 bar | 14 | 409 | 704 |
| PV80W | Vertical potable water expansion vessel 50 - 500 litres | 80 L | G 1″ | 10 bar | 16 | 480 | 745 |
| PV100W | Vertical potable water expansion vessel 50 - 500 litres | 100 L | G 1″ | 10 bar | 19 | 480 | 580 |
| PV140W | Vertical potable water expansion vessel 50 - 500 litres | 140 L | R 1″ | 10 bar | 29 | 480 | 1015 |
| PV200W | Vertical potable water expansion vessel 50 - 500 litres | 200 L | G 1¼″ | 10 bar | 40 | 634 | 790 |
| PV300W | Vertical potable water expansion vessel 50 - 500 litres | 300 L | G 1¼″ | 10 bar | 54 | 634 | 170 |
| PV400W | Vertical potable water expansion vessel 50 - 500 litres | 400 L | G 1¼″ | 10 bar | 70 | 740 | 1245 |
| PV500W | Vertical potable water expansion vessel 50 - 500 litres | 500 L | G 1¼″ | 10 bar | 79 | 740 | 1475 |
| PV600W | Vertical potable water expansion vessel 600 - 1000 litres | 600 L | G 1½″ | 10 bar | 103 | 740 | 1860 |
| PV800W | Vertical potable water expansion vessel 600 - 1000 litres | 800 L | G 1½″ | 10 bar | 195 | 740 | 2325 |
| PV1000W | Vertical potable water expansion vessel 600 - 1000 litres | 1000 L | G 1½″ | 10 bar | 228 | 740 | 2804 |
Technical Downloads
- PV W Potable Exp Vessel 50 to 1000 Litre Submittal Data
- Reflex Expansion Vessel IOM
- PV Expansion Vessel - Potable Water Data Sheet
- PV W Potable Exp Vessel 50 to 1000 Litre Submittal Data
Product Images
Click to download
VERTICAL POTABLE WATER EXPANSION VESSEL 50-1000 LITRES FAQs
There are no product specific FAQs currently available.
Please, view our general FAQs page to find the answer to your question.
HORIZONTAL POTABLE WATER EXPANSION VESSEL 25-100 LITRES
● Max working pressure: 10 bar
● Max vessel operating temperature: 70°C
● Factory pre-charge: 2.0 bar - nitrogen
● System water connection thread: BS EN ISO 228 - male
● Membrane: Fixed Butyl
VERTICAL POTABLE WATER EXPANSION VESSEL 8-33 LITRES
● Max working pressure: 10 bar
● Max vessel operating temperature: 70°C
● Factory pre-charge: 4.0 bar - nitrogen
● System water connection thread: BS EN ISO 228 - male
● Membrane: Fixed Butyl
