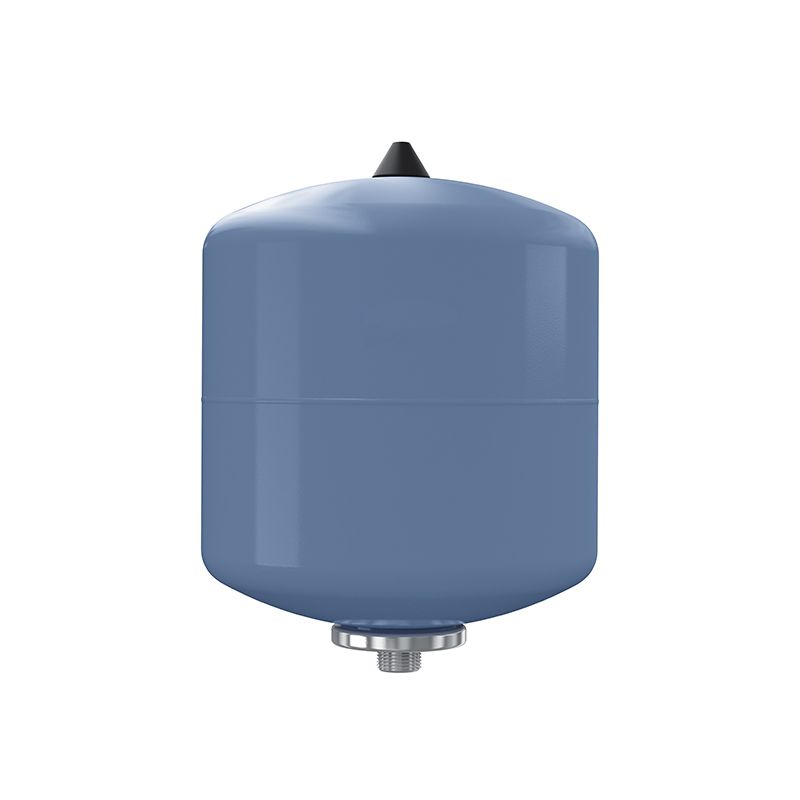

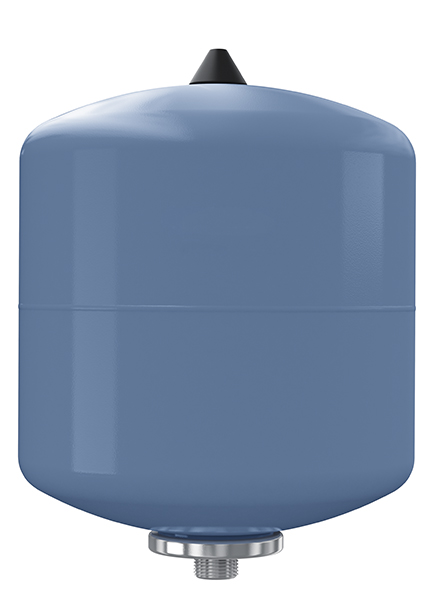

VERTICAL POTABLE WATER EXPANSION VESSEL 8-33 LITRES
● Max working pressure: 10 bar
● Max vessel operating temperature: 70°C
● Factory pre-charge: 4.0 bar - nitrogen
● System water connection thread: BS EN ISO 228 - male
● Membrane: Fixed Butyl
| Reference | Name | Size | Connections | Max Working Pressure | Weight Dry (Kg) | Dia (Ø D mm) | Ht (Ø H mm) |
|---|---|---|---|---|---|---|---|
| PV8W | Vertical potable water expansion vessel 8 - 33 litres | 8 L | G ¾″ | 10 bar | 1.8 | 206 | 335 |
| PV12W | Vertical potable water expansion vessel 8 - 33 litres | 12 L | G ¾″ | 10 bar | 2.4 | 280 | 310 |
| PV18W | Vertical potable water expansion vessel 8 - 33 litres | 18 L | G ¾″ | 10 bar | 2.8 | 280 | 410 |
| PV25W | Vertical potable water expansion vessel 8 - 33 litres | 25 L | G ¾″ | 10 bar | 4.7 | 280 | 520 |
| PV33W | Vertical potable water expansion vessel 8 - 33 litres | 33 L | G ¾″ | 10 bar | 6.6 | 354 | 455 |
Technical Downloads
- PV W Potable Exp Vessel 8 to 33 Litre Submittal Data
- Reflex Expansion Vessel IOM
- PV Expansion Vessel - Potable Water Data Sheet
- PV W Potable Exp Vessel 8 to 33 Litre Submittal Data
Product Images
Click to download
VERTICAL POTABLE WATER EXPANSION VESSEL 8-33 LITRES FAQs
There are no product specific FAQs currently available.
Please, view our general FAQs page to find the answer to your question.
HORIZONTAL POTABLE WATER EXPANSION VESSEL 25-100 LITRES
● Max working pressure: 10 bar
● Max vessel operating temperature: 70°C
● Factory pre-charge: 2.0 bar - nitrogen
● System water connection thread: BS EN ISO 228 - male
● Membrane: Fixed Butyl
VERTICAL POTABLE WATER EXPANSION VESSEL 50-1000 LITRES
● Max working pressure: 10 bar
● Max vessel operating temperature: 70°C
● Factory pre-charge: 4.0 bar - nitrogen
● Membrane: Replaceable Butyl (PV140W: Fixed Butyl)
● System water connection thread: BS EN ISO 228 - male 140 litre size: BS EN 10226 - male
● Top connection 80 litre +
● 300l - 1000l vessels palletised
