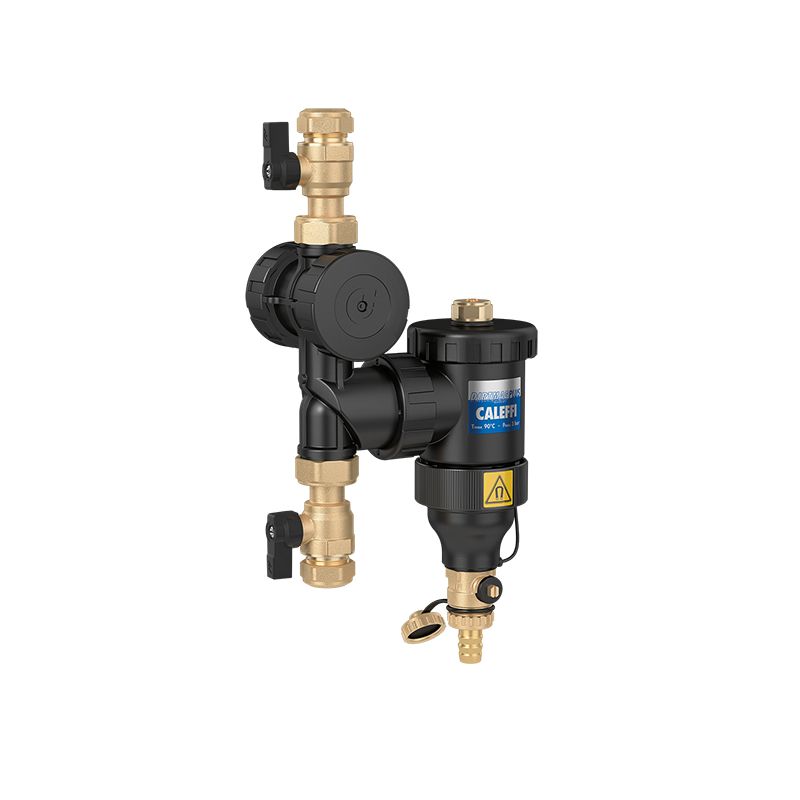

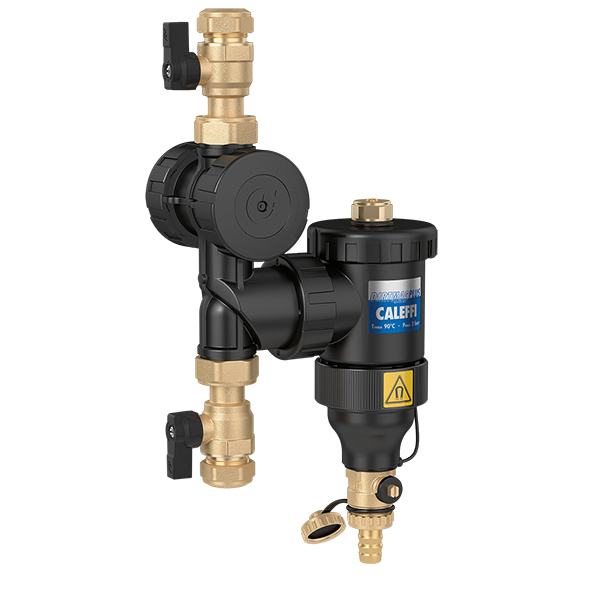

5453 SERIES - DIRTMAG® PLUS

Specific for the complete cleaning of the hydraulic circuit, to protect continuously generator and components.
Technopolymer body.
Dirt separator with tecnopolimer internal element, with magnet.
Two inspectable strainers with stainless steel mesh:
1 for initial cleaning (blue colour) already installed,
1 for maintenance (grey colour) in package.
Shut-off valves with nuts, brass body.
Female connections and Ø 22 and Ø 28 mm with compression ends.
Adjustable for horizontal, vertical or 45° pipes.
Drain cock with hose connection.
Max. working pressure: 3 bar.
Temperature range: 0 - 90 °C.
