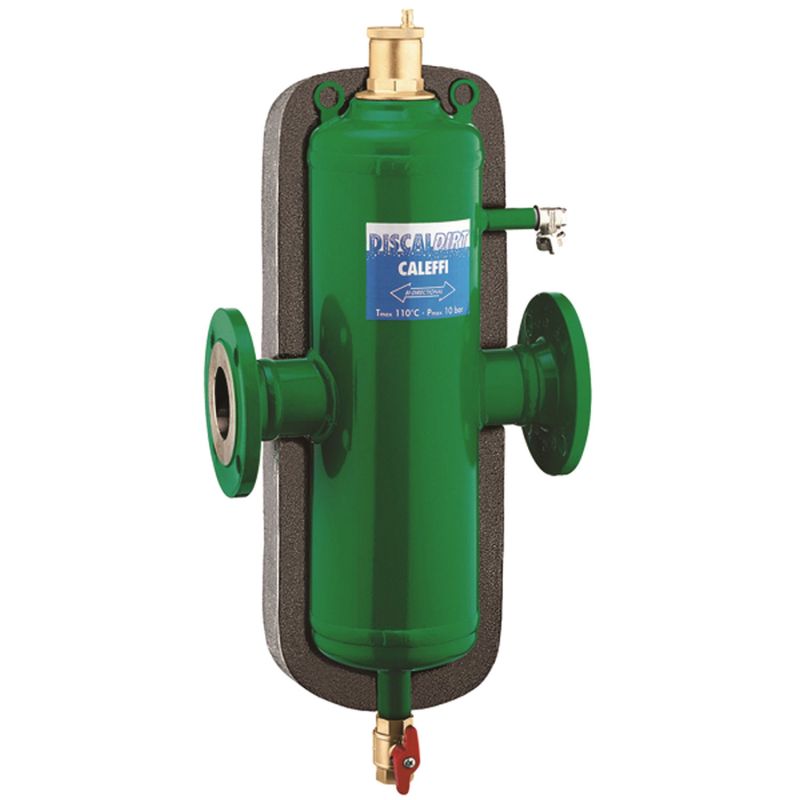

DISCAL DIRT AND AIR SEPARATORS (WITH INSULATION)
The DISCALDIRT range of dirt and air separators are designed for use on heating and
air conditioning systems to provide an efficient method of dirt and air removal.
● Range of dirt and air separators for use in commercial applications
● Max working pressure: 10 bar
● Max discharge pressure: 10 bar
● Temperature range: 0 - 110°C
● Max percentage of glycol: 50%
| Reference | Name | Size | Connections | Insulation | Orientation | Body |
|---|---|---|---|---|---|---|
| 546052 | DISCAL® dirt and air separator (flanged, including insulation) | DN50 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546062 | DISCAL® dirt and air separator (flanged, including insulation) | DN65 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546082 | DISCAL® dirt and air separator (flanged, including insulation) | DN80 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546102 | DISCAL® dirt and air separator (flanged, including insulation) | DN100 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546122 | DISCAL® dirt and air separator (flanged, including insulation) | DN125 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546152 | DISCAL® dirt and air separator (flanged, including insulation) | DN150 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 546053 | DISCAL® dirt and air separator (welded socket, including insulation) | DN50 | Welded socket PN10 | Yes | Horizontal | Epoxy resin coated steel |
| 546063 | DISCAL® dirt and air separator (welded socket, including insulation) | DN65 | Welded socket PN10 | Yes | Horizontal | Epoxy resin coated steel |
| 546083 | DISCAL® dirt and air separator (welded socket, including insulation) | DN80 | Welded socket PN10 | Yes | Horizontal | Epoxy resin coated steel |
| 546103 | DISCAL® dirt and air separator (welded socket, including insulation) | DN100 | Welded socket PN10 | Yes | Horizontal | Epoxy resin coated steel |
| 546123 | DISCAL® dirt and air separator (welded socket, including insulation) | DN125 | Welded socket PN10 | Yes | Horizontal | Epoxy resin coated steel |
| 546153 | DISCAL® dirt and air separator (welded socket, including insulation) | DN150 | Welded socket PN10 | Yes | Horizontal | Epoxy resin coated steel |
