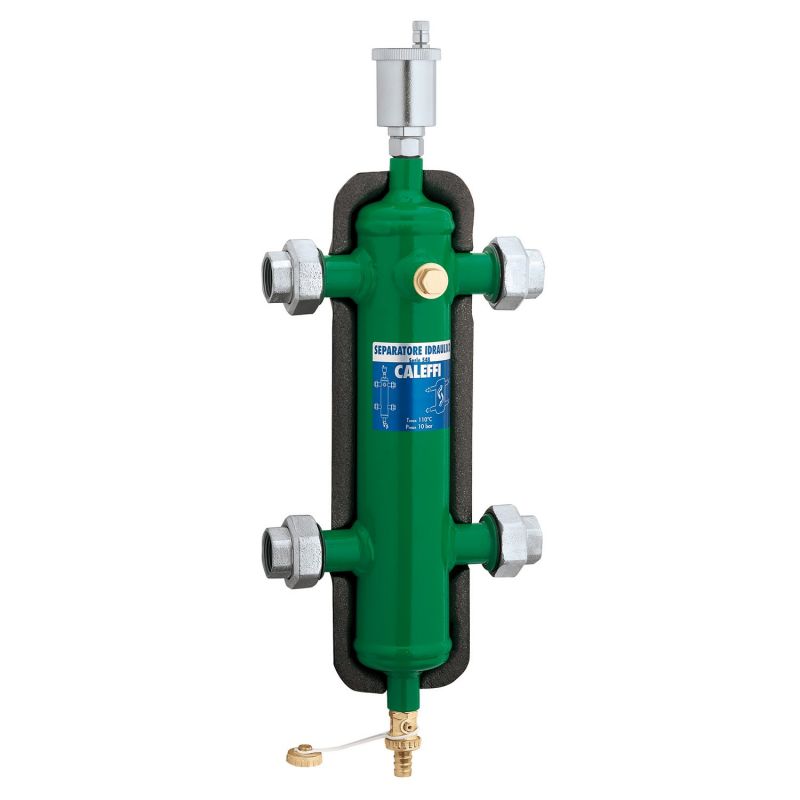

HYDRAULIC SEPARATOR
SPECIFICATION - 548 SERIES SCREWED IRON
● Hydraulic separator. Connections 1” F (from 1” - 2”) with union
● Epoxy resin coated steel body
● Medium water and non-hazardous glycol solutions excluded from the guidelines of
EC directive 67/548
● Max percentage of glycol: 30%
● Max working pressure: 10 bar
● Temperature range: 0 - 100°c
● Temperature probe connection: ½˝ F
SPECIFICATION - 548 SERIES FLANGE
● Hydraulic separator. Flanged connections DN 50 (from DN 50 - DN 150) PN 16, DN
200 (from DN 200 - DN 300) PN 10, for coupling with counter flanges EN 1092-1.
Epoxy resin coated steel body.
● Medium water and non-hazardous glycol solutions excluded from the guidelines of
EC directive 67/548.
● Max percentage of glycol: 30%
● Max working pressure: 10 bar
● Temperature range: 0 - 110°C
● Temperature probe connection: ½˝ F
| Reference | Name | Size | Connections | Insulation | Orientation | Body |
|---|---|---|---|---|---|---|
| 548006 | Hydraulic separator | 1″ | F X F BSP | Yes | Horizontal | Epoxy resin coated steel |
| 548007 | Hydraulic separator | 1¼″ | F X F BSP | Yes | Horizontal | Epoxy resin coated steel |
| 548008 | Hydraulic separator | 1½″ | F X F BSP | Yes | Horizontal | Epoxy resin coated steel |
| 548009 | Hydraulic separator | 2″ | F X F BSP | Yes | Horizontal | Epoxy resin coated steel |
| 548052 | Hydraulic separator (flanged including insulation) | DN50 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 548062 | Hydraulic separator (flanged including insulation) | DN65 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 548082 | Hydraulic separator (flanged including insulation) | DN80 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 548102 | Hydraulic separator (flanged including insulation) | DN100 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 548122 | Hydraulic separator (flanged including insulation) | DN125 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 548152 | Hydraulic separator (flanged including insulation) | DN150 | Flanged PN16 | Yes | Horizontal | Epoxy resin coated steel |
| 548200 | Hydraulic separator (flanged) | DN200 | Flanged PN10 | No | Horizontal | Epoxy resin coated steel |
| 548250 | Hydraulic separator (flanged) | DN250 | Flanged PN10 | No | Horizontal | Epoxy resin coated steel |
| 548300 | Hydraulic separator (flanged) | DN300 | Flanged PN10 | No | Horizontal | Epoxy resin coated steel |
